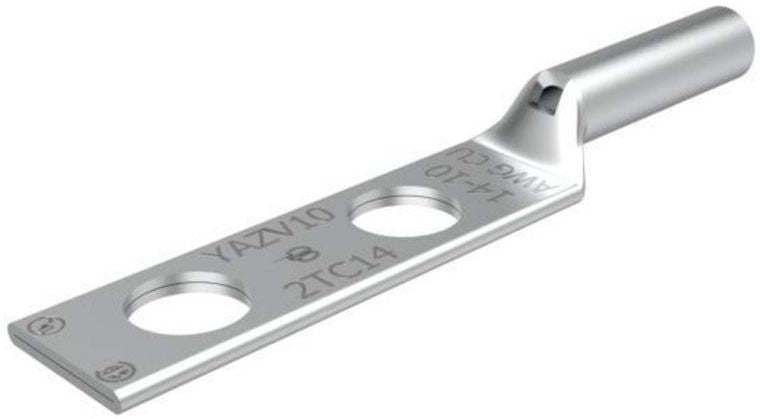

Burndy YAZV102TC14 Compression Terminal

Out of stock
SKU: 157160
Regular price $8.42

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 14 to 10 AWG Stranded, 14 to 10 AWG (Code)
Barrel Type: Long, Skived, Standard, Straight
Barrel Length: 0.69 Inch
Pad Size: 0.41 Inch W x 0.05 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 5/8 Inch
Stud Size: 1/4 Inch
Material: Electro-Tin Plated Copper
Overall Length: 2.16 Inch
Approval: UL, CSA
