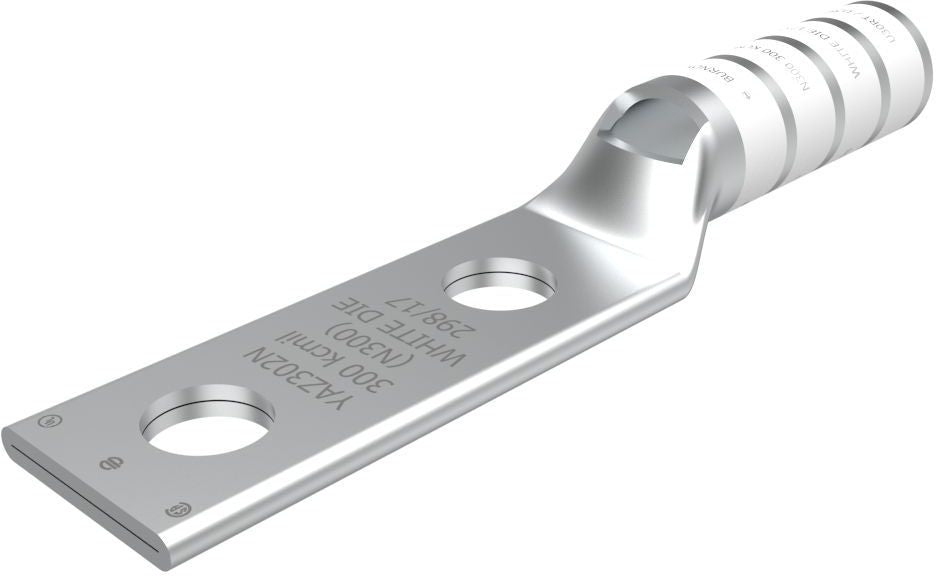

Burndy YAZ302N Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 300 (Navy), 300 KCMIL Stranded (Code)
Barrel Type: Long, Skived, Straight
Barrel Length: 2 Inch
Pad Size: 1.2 Inch W x 0.16 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: White
Die Index: 17/298
Material: Electro-Tin Plated Copper
Overall Length: 5.6 Inch
Approval: UL 468A/468B, CSA
