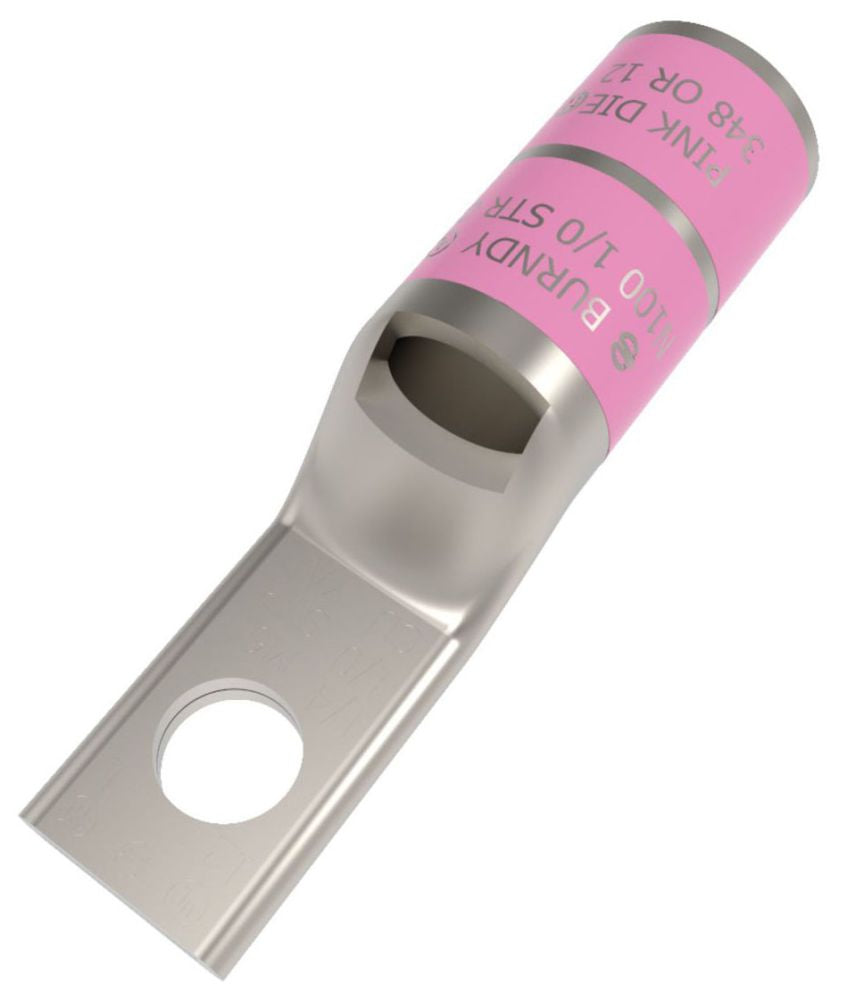

Burndy YA25LNT516 Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Not Recommended in Highly Corrosive Environments as the Wire in the Barrel is Exposed to Corrosive Elements when Installed; Narrow Tongue/Tang is Designed for Limited Space Applications; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

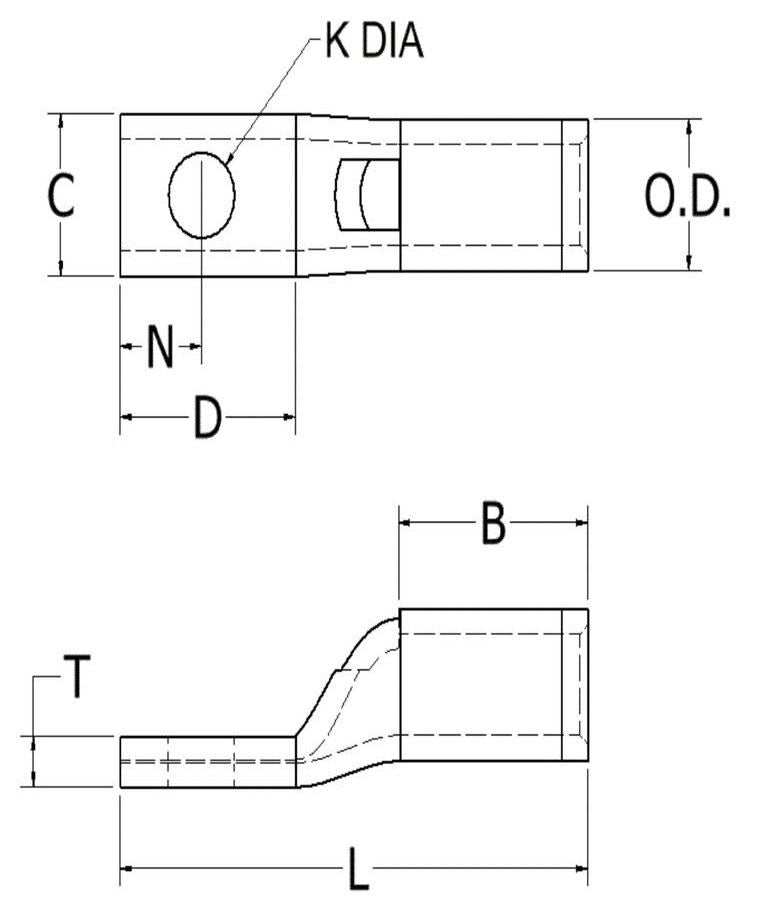

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1/0 AWG Solid/Stranded (Code)
Barrel Type: Skived, Standard, Straight
Barrel Length: 0.88 Inch
Pad Size: 0.62 Inch W x 0.12 Inch Thk
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Pink
Die Index: 12
Material: Electro-Tin Plated Copper
Overall Length: 2.28 Inch
Approval: UL, CSA
