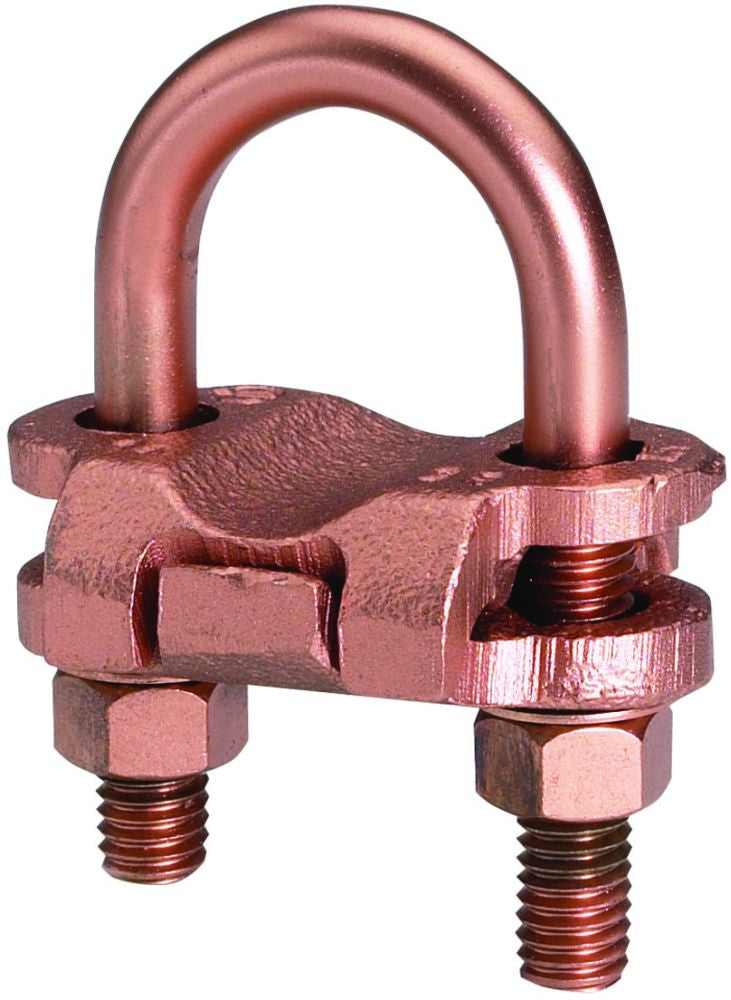

Burndy GP6429 Mechanical Grounding Connector

High Copper Alloy Ground Connector for Joining a Range of Parallel Cables Perpendicular to Rod, Pipe or Column; Also Used with One Groove for Run the Other for Tap to Equipment; High Copper Alloy Cast Body and Durium U-Bolts, Nuts, Lock Washer Make the GP Suitable for Direct Burial in the Ground or Concrete; 1-Wrench Installation; Acceptable for Direct Burial in Earth or Concrete; RoHS Compliant

Specifications:

Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 KCMIL Stranded (Copper)
IPS Size: 3/8 Inch
Rod Size: 5/8 to 3/4 Inch

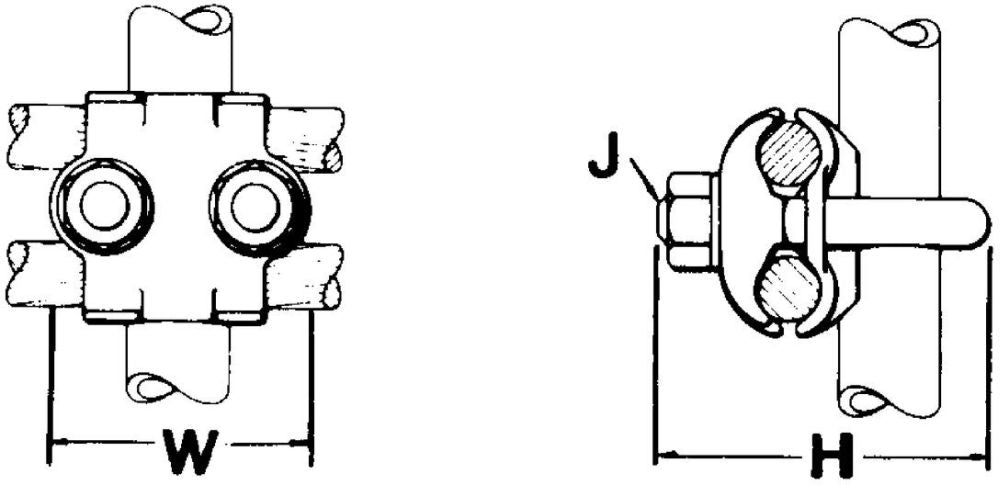

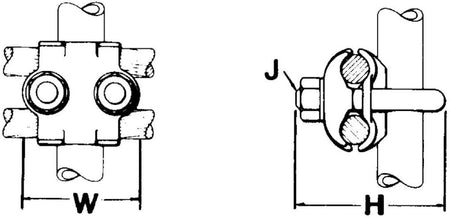

Size: 2-1/8 Inch Width x 2-7/8 Inch Height
Installation: U-Bolt to Pipe/Rod
Material: Cast High Copper Alloy (Body), Durium (U-Bolt/Nut/Lockwasher)
Approval: UL 467, CSA
Used On: (2) Parallel Copper Cable Perpendicular to Column/Pipe/Rod, Direct Burial
