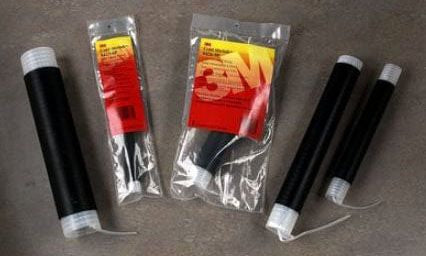

3Mâ„¢ Cold Shrink Connector Insulators 8420 Series are Designed Using 3M Proprietary Cold Shrink Delivery System; Removal of the Core after Positioning the Splice Allows the Product to Shrink into Position Forming a Moisture-Tight Seal; The Live Memory Action of the Specially Formulated Perm Material Promotes a Permanent, Durable Environmental Seal and Insulation, with a Typical Operating Temperature Range from-40 to 194 Deg F; RoHS Compliant

Specifications:

Type: In Line
Voltage Rating: 1 KV
Cable Type: Tape Shield, Unishield, Wire Shield, Direct Burial/Submersible
Number of Conductors: 1
Insulator Type: Cold Shrink Tube, EPDM Rubber Sleeve
Connector Type: Sleeve
Conductor Size: 500 to 800 KCMIL
Cable Insulation Outer Diameter: 1.94 Inch
Contents: Adapter
