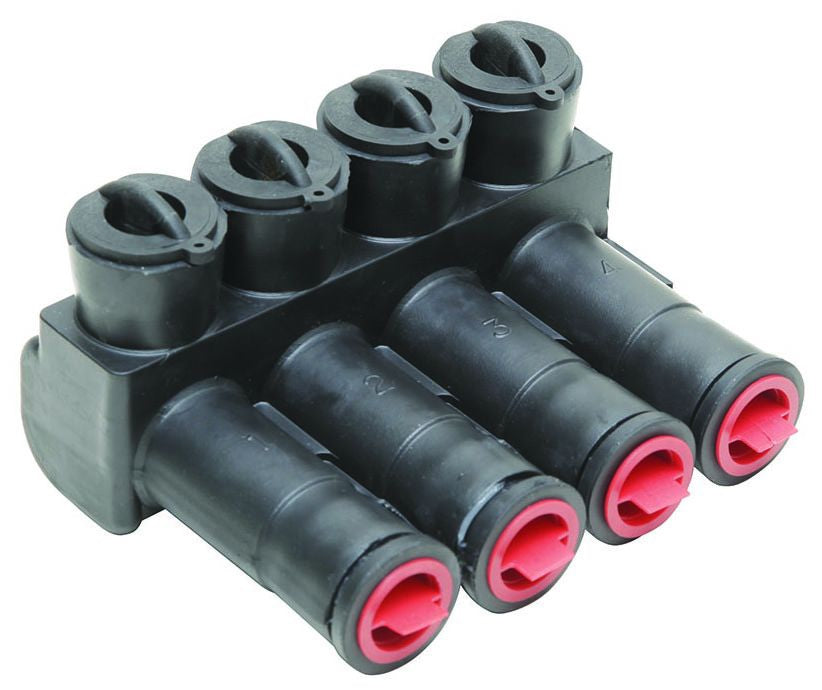

Burndy BIBS3504DB Mechanical Direct Burial Multiple Tap Connector

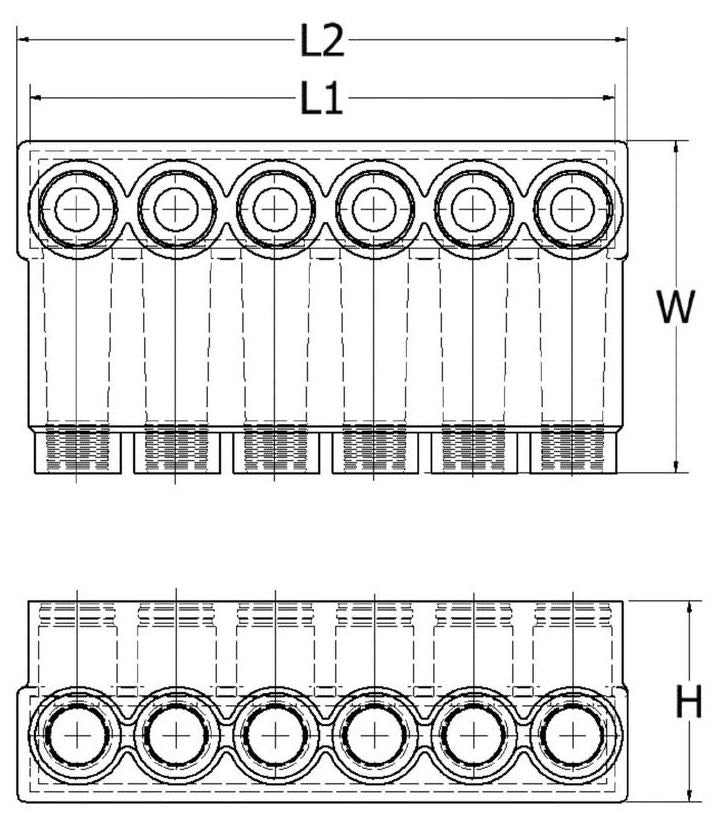

Alternate Image 1
Burndy BIBS3504DB Mechanical Direct Burial Multiple Tap Connector
Alternate Image 1
Burndy

Burndy BIBS3504DB Mechanical Direct Burial Multiple Tap Connector

Out of stock
SKU: 158710
$33.63

Visit Our YouTube Channel

Dual Rated for Aluminum or Copper Conductors; Each Unit is Individually Marked for Ease of Identification; Supplied with Aluminum Set Screws; Covering is the Highest Quality EPDM Rubber; Supplied with Oxide Inhibitor Pre-Installed; Suitable for Direct Burial; For Use in Wet or Damp Locations; Silicone Provided for Conductor Insertion

Specifications:

Voltage Rating: 600 V
Number of Ports: 4
Cable Entry: 1 Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 12 AWG (Aluminum), 12 AWG Stranded (Copper)
Maximum Conductor Size: 350 KCMIL (Aluminum), 350 KCMIL Stranded (Copper)
Body Material: Aluminum
Approval: UL, CSA
