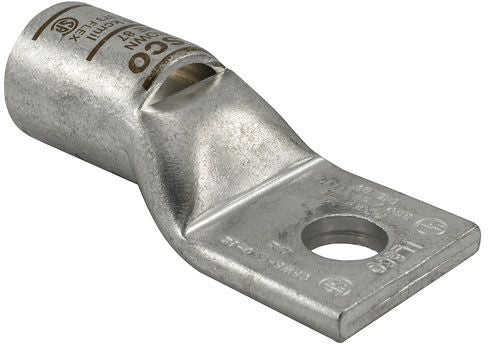

Ilsco CSWS-2-38 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG
Barrel Type: Standard, Chamfered Entry
Barrel Length: 0.625 Inch
Pad Size: 0.875 Inch Length x 0.599 Inch Width
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Brown
Die Index: I-33
Material: Electro Tin Plated Seamless Copper
Overall Length: 1.786 Inch
Approval: UL 453G/467/486A/B, CSA
