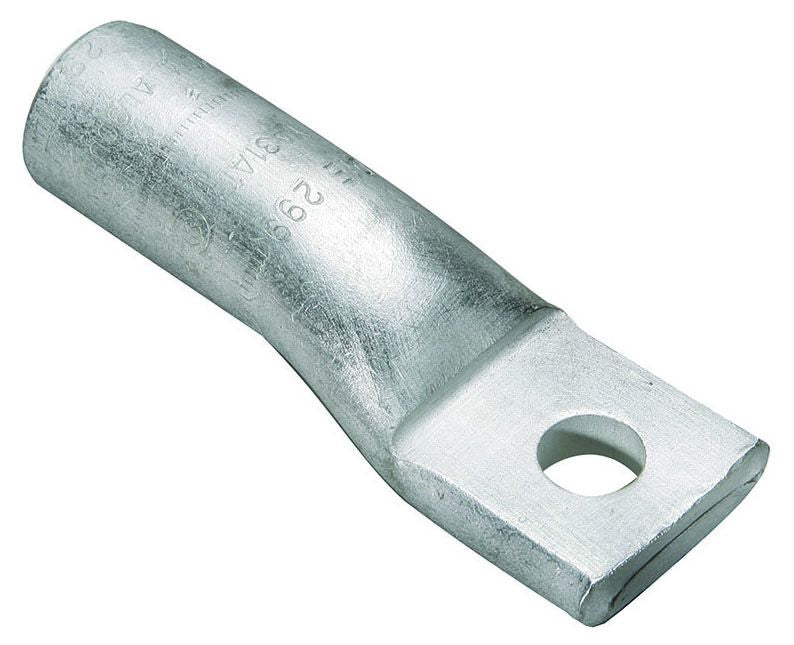

Burndy YA2CA5 Compression Terminal

Out of stock
SKU: 158884
Regular price $17.98

Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.


Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 1 Inch
Pad Size: 0.5 Inch W x 0.22 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Pink
Die Index: 348
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 2.25 Inch
Approval: UL 468A/468B, CSA
