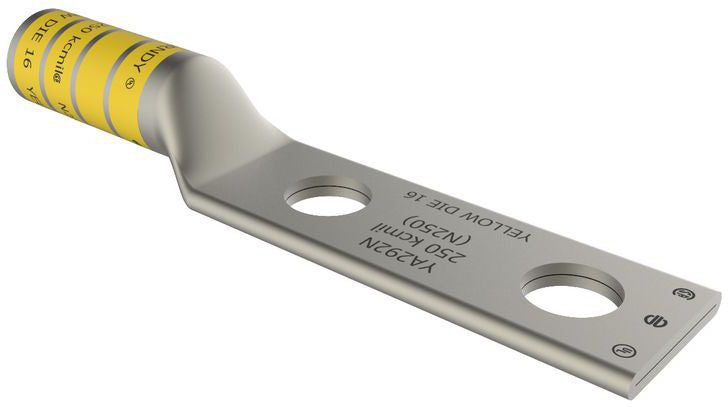

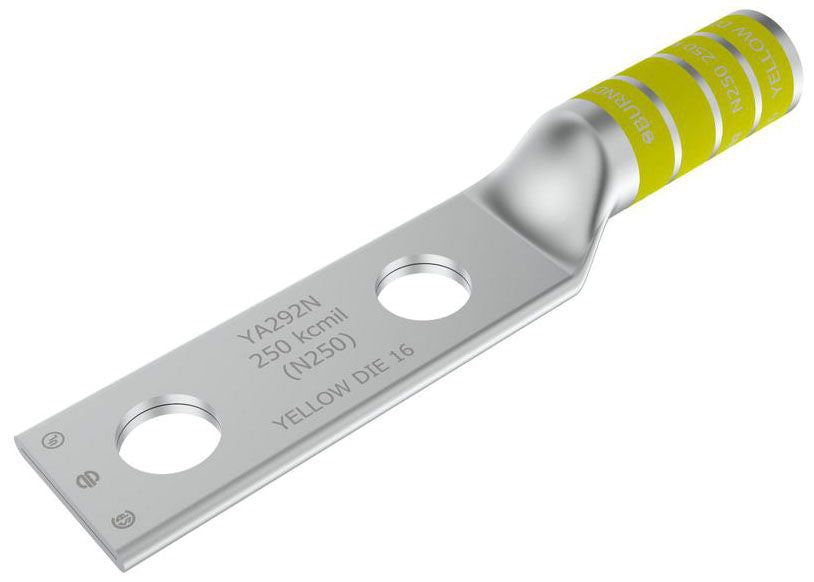

Burndy YA292N Compression Terminal

Out of stock
SKU: 159073
Regular price $16.78
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 250 KCMIL (Stranded)
Barrel Type: Long, Straight, Chamfered Entry
Barrel Length: 1.62 Inch
Pad Size: 1.11 Inch Width x 0.16 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Yellow
Die Index: 16
Material: Electro Tin Plated Copper
Overall Length: 5.21 Inch
Approval: UL468A/B
