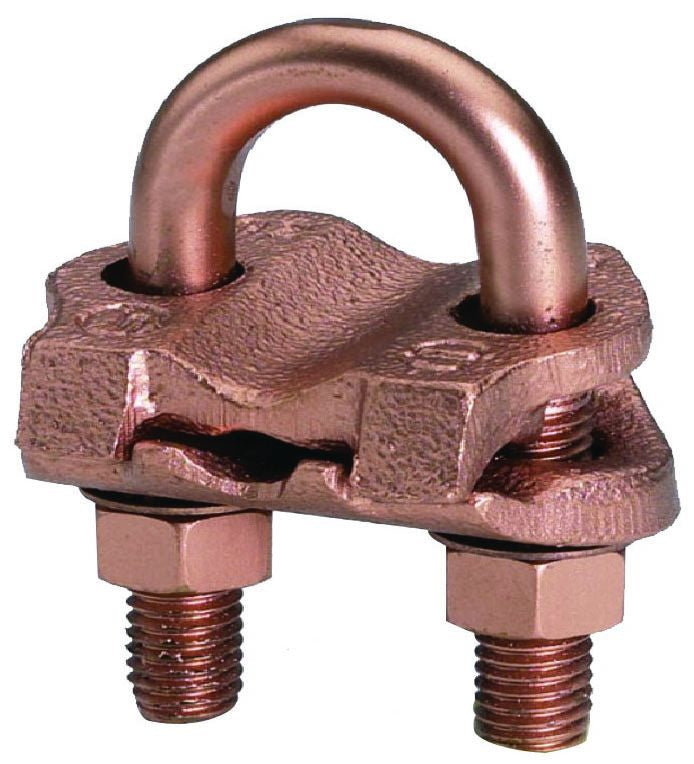

Burndy GAR1729 Mechanical Grounding Connector

Out of stock
SKU: 159300
Regular price $126.08
OR

High Copper Alloy Ground Connector for Joining a Range of Cable, Parallel or at Right Angles to Rod or Tube; Especially Good for Fence Posts; High Copper Alloy Cast Body with Durium U-Bolts, Nuts and Lock Washer, Permit Entire Connection to be Buried in Ground or Concrete without Danger of Corrosion; Fence Post Grounding Connector; 1-Wrench Installation; Acceptable for Direct Burial; Wire to Rebar; Wire to Pipe; RoHS Compliant

Specifications:

Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 KCMIL Stranded (Copper)
IPS Size: 1-1/2 Inch
Rod Size: 1-5/8 to 1-7/8 Inch

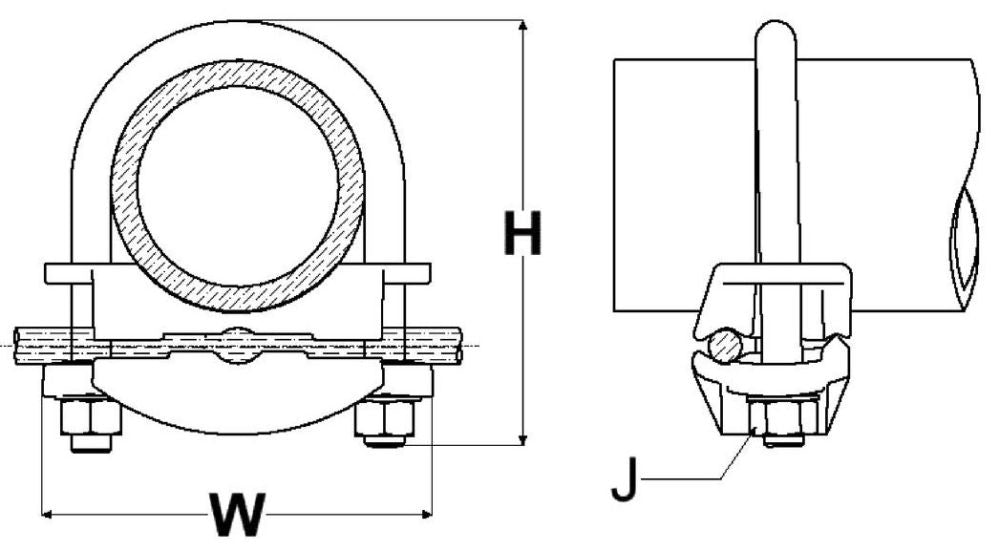

Size: 3-1/4 Inch W x 4 Inch H
Installation: U-Bolt to Pipe/Rod
Material: Bright Dipped Cast High Copper Alloy Body, Durium Silicon Bronze Hardware
Approval: UL 467, UL (Canada and US), CSA
Used On: Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial
