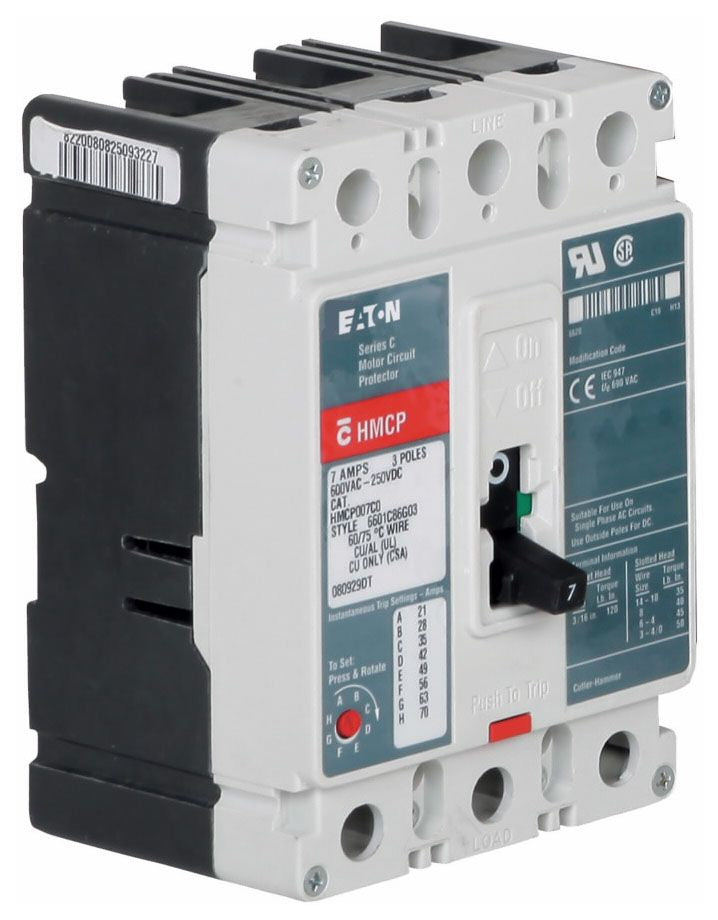

Designated as Eaton’s Types GMCP and HMCP, the instantaneous-only motor circuit protector (MCP) is available in ratings from 3 A to 1200 A for motor starter sizes 0 through 8. An innovative design of internal components allows higher MCP-starter combination interrupting ratings. The MCP is marked to permit proper electrical application within the assigned equipment ratings.

Specifications:

Type: Molded Case, Magnetic
Frame Type: F
Voltage Rating: 600 Volt AC, 250 Volt DC
Maximum AC Voltage Rating: 600 Volt AC
Maximum DC Voltage Rating: 250 Volt DC
Current Rating: 15 Amp
Number of Poles: 3
Trip Setting: 45 to 150 Amp
Starter Size: NEMA 0
Motor FLA: 3.4 to 12.6 Amp
Terminal Type: Non-Aluminum Line and Load Terminal
Approval: UL 489, CSA C22.2, CE
