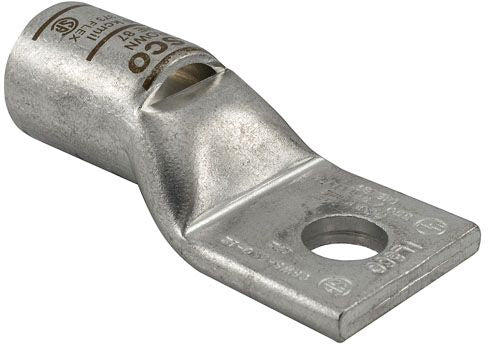

Ilsco CSWS-1-12 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 1 AWG
Barrel Type: Standard
Barrel Length: 0.625 Inch
Pad Size: 1.25 Inch L x 0.739 Inch W x 0.109 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Green
Die Index: I-37
Material: Seamless Electro-Tin Plated Copper
Overall Length: 2.205 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
