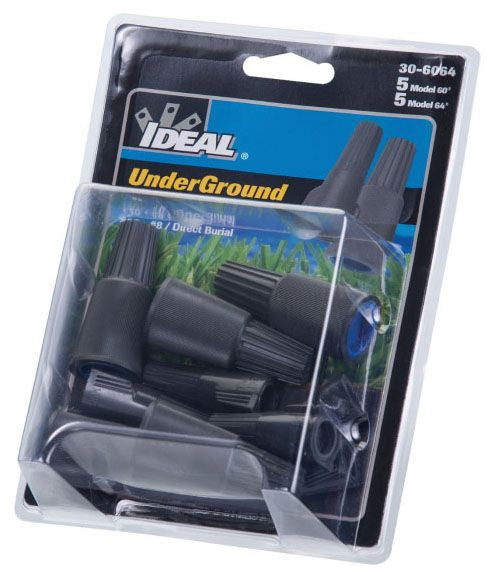

IDEAL Electrical 30-6064 Wire Connector

100% Silicone Based Sealant Protects against Moisture and Corrosion; Easy to apply, Pre-Filled Twist-On Wire Connectors; Expanding, Live Action Square-Wire Spring for Fast, Secure and Long-Lasting Connections; Deep Skirt Provides Superior Moisture Resistance to Protect Connections

Specifications:

Type: Swept Wing
Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 20 to 10 AWG, 18 to 8 AWG
Minimum Wire Combination Size: (1) #20 with (1) #18, (2) #18
Maximum Wire Combination Size: (1) #10 with (2) #12, (3) #10
Spring Type: Square Wire, Live Action
Shell Material: Thermoplastic Polyester
Color: Gray/Blue, Gray/Dark Blue
Temperature Rating: 105 Deg C
Standard Package: 10 per Card
Approval: UL 486C/D, CSA C22.2, CE
