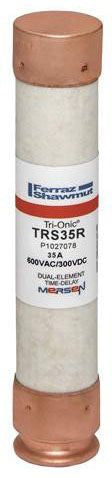

Mersen EP TRS35R Low Voltage UL Power Fuse
Regular price
$30.93
Couldn't load pickup availability
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Specifications:
Type: Motor Circuit Protection, Class RK5
Voltage Rating: 600 Volt AC/300 Volt DC
Current Rating: 35 Amp
Interrupting Rating: 200 Kiloamp (AC), 100/20 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 1.06 Inch
Length: 5.5 Inch
Approval: UL, CSA
