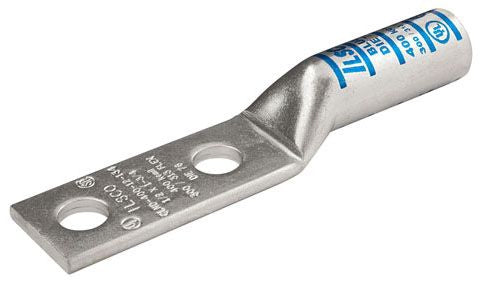

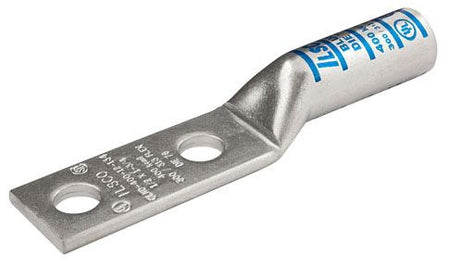

Ilsco CLND-2-12-134 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing; Electro-Tin Plated; Chamfered Entry; Color Coded; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; UL Listed and CSA Certified with Ilsco and Major Competitors Compression Tools; Rated to 90 Deg C; Offers Maximum Conductivity and Excellent Crimping Characteristics; Provides Low Contact Resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; Reduces Inventory Requirements; For Grounding and Bonding Applications; Versatility; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 2 AWG
Barrel Type: Long
Barrel Length: 1.125 Inch
Pad Size: 3 Inch L x 0.75 Inch W x 0.109 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Brown
Die Index: I-33
Material: Seamless Electro-Tin Plated Copper
Overall Length: 4.411 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
