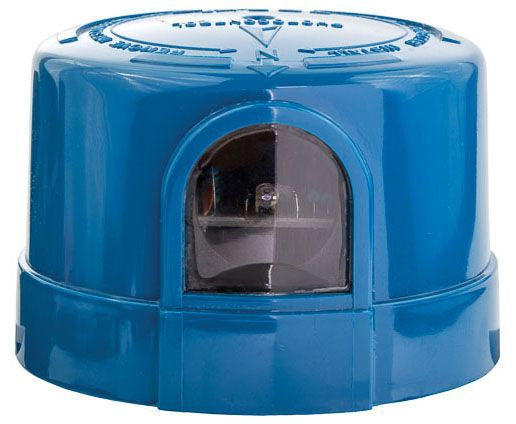

Superior light sensing technology driven by a molded sealed IR Filtered Non-Drifting Silicon Sensor designed for extreme accuracy and calibrated to duplicate a Human Eye Response; 360 Joule MOV component helps provide superior Photocontrol and LED luminaire surge protection against unpredictable line voltage spikes; UV stabilized Polycarbonate housing and window with conformal coated electronics maximizing protection against extreme weather elements and moisture; Delayed OFF response prevents false switching due to light from vehicles or lighting; Energy Savings Rated for use with LED lamp drivers; RoHS Compliant

Specifications:

Type: Relay
Voltage Rating: 105 to 305 Volt AC 50/60 Hertz
Tungsten Load Rating: 1000 Watt
Ballast Load Rating: 1800 Volt Amp
Response Feature: Time Delay
Surge Arrester Type: MOV
Surge Arrester Rating: 360 Joule
Turn ON Light Level: 1.5 FC
Turn OFF Light Level: 2.25 FC
Temperature Rating: -40 to 158 Deg F
Mounting: Turn Lock with Prong
Enclosure Material: Polypropylene
Finish: Blue
Size: 3-3/16 Inch Diameter x 2-3/16 Inch Height
Application: Local Utility-Street, Highway Lighting Control, Roadway, Area, Parking, Flood and Security Type Lighting Fixture
Approval: UL (Canada and US), CSA
