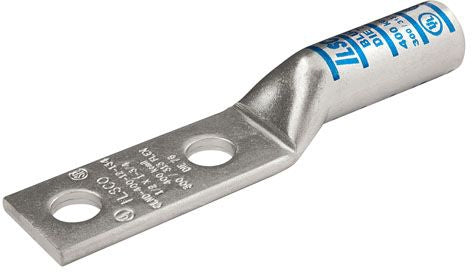

Ilsco CLND-700-12-134 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 700 KCMIL
Barrel Type: Long, Straight
Barrel Length: 2.687 Inch
Pad Size: 3 Inch Length x 1.816 Inch Width x 0.259 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Pink
Die Index: I-99
Material: Electro Tin Plated High Strength Seamless Copper
Overall Length: 6.556 Inch
Approval: UL 453G/467/486A/B, CSA
