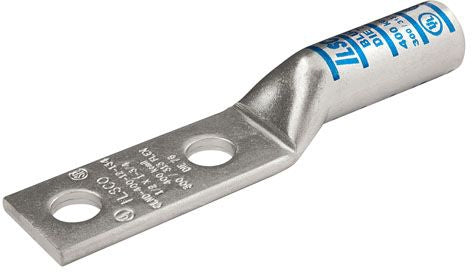

Ilsco CLND-4/0-38-1 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 4/0 AWG
Barrel Type: Long
Barrel Length: 1.5 Inch
Pad Size: 1.937 Inch L x 0.999 Inch W x 0.141 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Purple
Die Index: I-54
Material: Seamless Electro-Tin Plated Copper
Overall Length: 3.928 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
