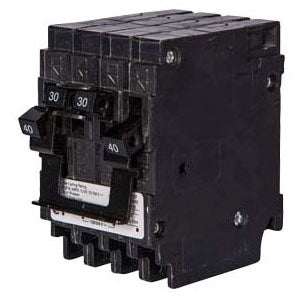

Heating and Air Conditioning Rated; These Space Saver Quadplex Breakers Provide Two Sets of Common Trip, 2-Pole Breakers for 120/240 Volt AC Circuits and Require Two Panel Spaces

Specifications:

Type: Thermal/Fixed Magnetic, Common Trip, Quadplex
Number of Poles: (2) Inside, (2) Outside
Voltage Rating: 120/240 VAC at 50/60 Hz
Current Rating: 30 Ampere (Inside), 40 Ampere (Outside)
Interrupting Rating: 10 Kiloamp
Terminal Type: Lug
Wire Size: 14 to 6 AWG (Copper/Aluminum) Inside, 8 to 6 AWG (Copper)/8 to 4 AWG (Aluminum) Outside
Mounting: Plug-In
Used On: Loadcenter
Size: 2 Inch W x 2.06 Inch D x 3.12 Inch H
Approval: UL 489
