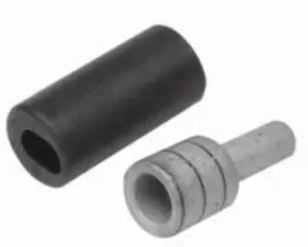

Burndy YE31P51X102FX Compression Pin Adapter

Out of stock
SKU: 162565
Regular price $136.13
OR

Type YE-P copper compression adapters are designed for reliable termination of copper conductor when the current capacity of the conductor is downsized, but larger conductor is utilized. Typical applications are for voltage drop protection when oversized conductors are used or flex conductor is used. These adapters facilitate the termination into existing mechanical set screw connectors for various stranded copper cables.

Specifications:

Voltage Rating: 600 V
Conductor Material: Copper
Conductor Size: 250 KCMIL (Flex Class I, K, M), 262.6 KCMIL (Flex)
Material: Copper
Insulation Type: EPDM Rubber Insulated
Pin Size: 0.51 Inch Dia x 1.02 Inch L
Overall Length: 3.82 Inch
Approval: UL
