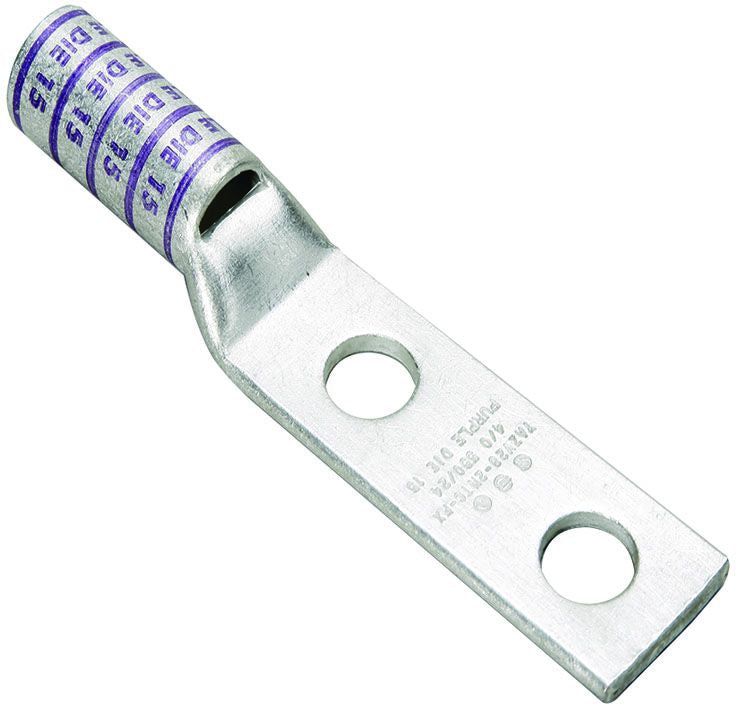

Burndy YAZ392N Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 750 KCMIL Stranded (Code)
Barrel Type: Long, Skived, Straight
Barrel Length: 2.88 Inch
Pad Size: 1.91 Inch W x 0.27 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Black
Die Index: 24
Material: Electro-Tin Plated Copper
Overall Length: 6.82 Inch
Approval: UL 468A/468B, CSA
