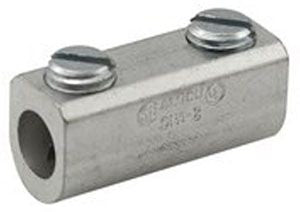

Ilsco SPA-500 Mechanical Cable Splicer/Reducer

Electro Tin Plated; Chamfered Wire Entry; Rounded Bottoms; Large Screw Diameters; Wire Stop in Center; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Facilitates Taping; Ensures All Wire Strands are Held Securely; Prevents Dissimilar Metals Coming into Contact; Application Versatility; RoHS Compliant

Specifications:

Type: In-Line
Voltage Rating: 2000 V
Minimum Conductor Size: 4 AWG
Maximum Conductor Size: 500 KCMIL
Conductor Material: Aluminum/Copper
Number of Screws: 2
Screw Size: 13/16 Inch Dia
Hex Size: 3/8 Inch
Size: 3-7/8 Inch L x 1-1/8 Inch W x 1-5/8 Inch H
Body Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Insulation Type: Non-Insulated
Approval: UL 453G, UL 486A/B, CSA
