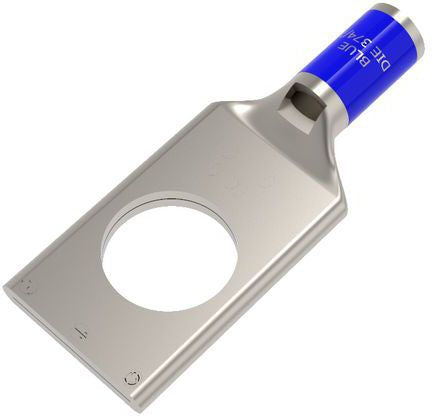

Burndy YA6CL6 Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 6 AWG Stranded (Code)
Barrel Type: Short, Skived, Standard, Straight
Barrel Length: 0.54 Inch
Pad Size: 0.75 Inch W x 0.12 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Blue
Die Index: 7/374
Material: Electro-Tin Plated Copper
Overall Length: 1.87 Inch
Approval: UL, CSA
