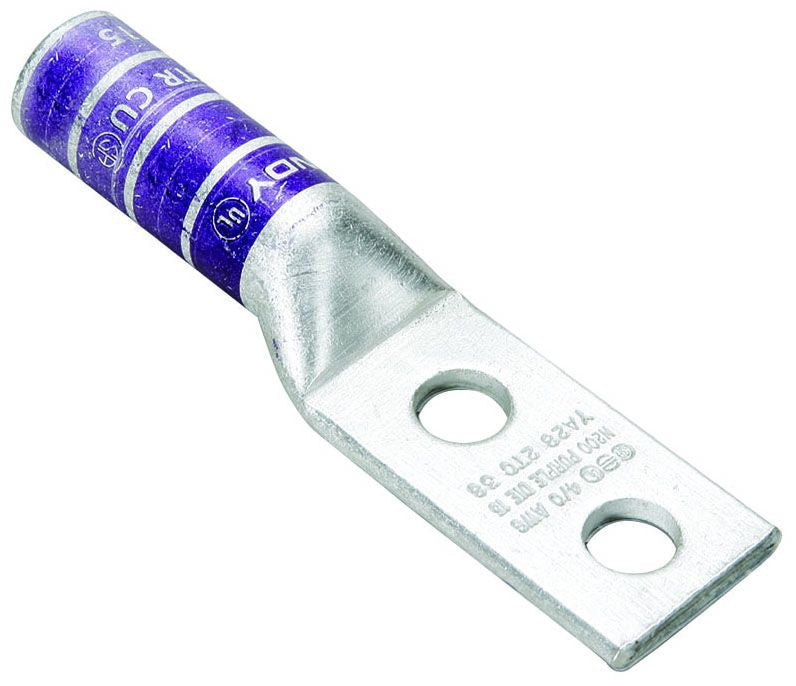

Burndy YA3C2N Compression Cable Lug

In stock - 6 items available
SKU: 163243
Regular price $25.09
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG Solid, 3 AWG Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: White
Die Index: 9
Material: Electro Tin Plated Copper
Overall Length: 4.62 Inch
Approval: UL 468A/468B, CSA
