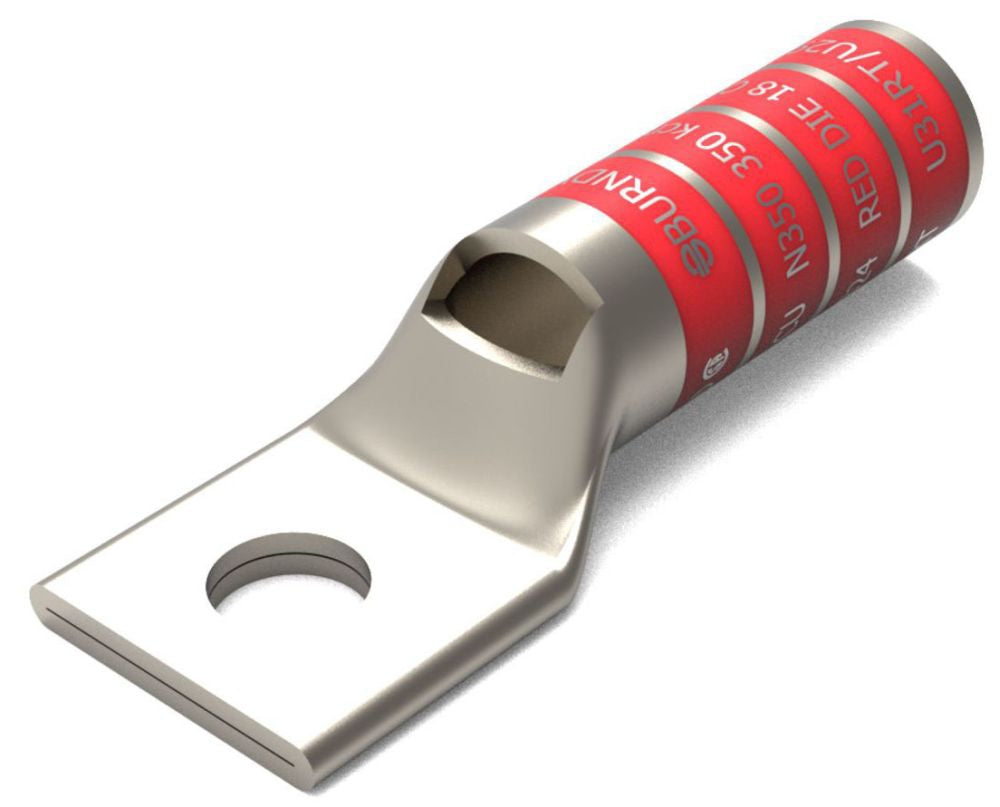

Burndy YAZ31TC12 Compression Cable Lug
Couldn't load pickup availability
Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 350 (Navy), 350 KCMIL Stranded (Code)
Barrel Type: Long, Skived, Straight
Barrel Length: 2 Inch
Pad Size: 1.29 Inch W x 0.18 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Red
Die Index: 18/324
Material: Electro-Tin Plated Copper
Overall Length: 3.69 Inch
Approval: UL, CSA
