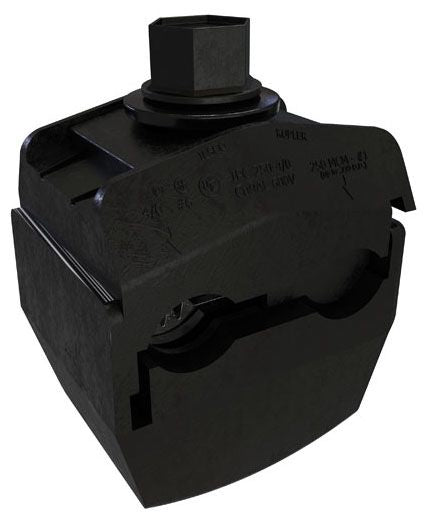

Ilsco IPC-250-4/0 Insulation Piercing Connector

Dual Rated; Body is Molded from Tough, Resilient Glass-Filled Nylon; Compact Design; Tin Plated Copper Contact Teeth; Insulation Piercing; Perforated End Tabs; Pre-Filled with Silicone Lubricant; Versatile; Increased Safety; Horizontal Line Grid; Temperature Rating 90 Deg C; Provides High Degree of Breakage Resistance and Long Dependable Use; Saves Space; Easily Penetrates Most Types of Insulation; No Need to Strip the Conductor Which Saves Installation Time; Break Out Easily by Hand; Prevents Oxidation and Moisture from Entering the Contact Area; Can be Used as a Splice or Tap Connector; Contains No External Energized Parts; Can be Installed "Hot" on Energized Conductors Providing Tap Conductor is Not Under Load; Provides a Visual Guide for Proper Installation of Conductors; RoHS Compliant

Specifications:

Voltage Rating: 600 V
Wire Type: Copper/Aluminum
Wire Size: 1 AWG to 250 KCMIL (Main), 6 to 4/0 AWG (Tap)
Connection Type: Splice, Tap
Temperature Rating: 90 Deg C
Standard Package: 4
Approval: UL 486A/B, UL 923F, CSA
