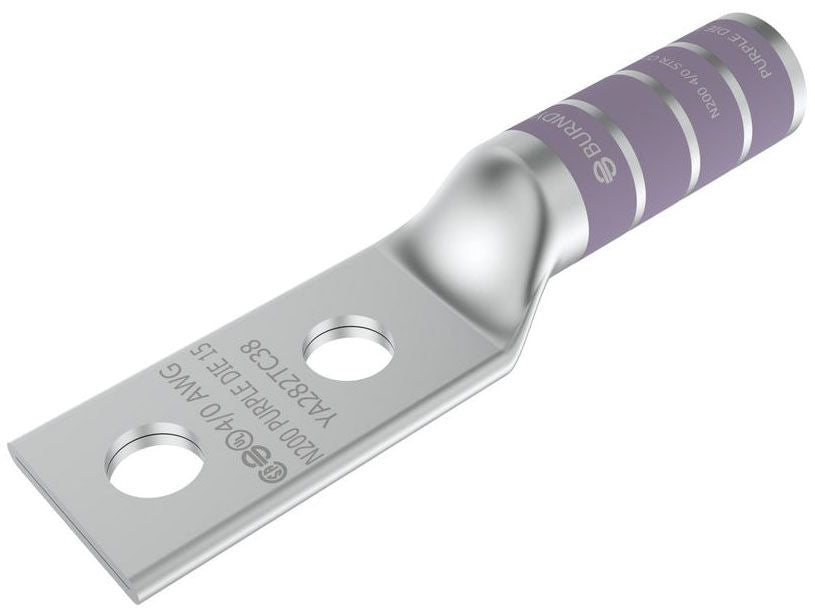

Burndy YA282TC38 Compression Cable Lug

Out of stock
SKU: 164335
Regular price $24.54
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 4/0 AWG Solid/Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 1.62 Inch
Pad Size: 1.02 Inch W x 0.14 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Purple
Die Index: 15
Material: Electro-Tin Plated Copper
Overall Length: 3.99 Inch
Approval: UL 468A/468B, CSA
