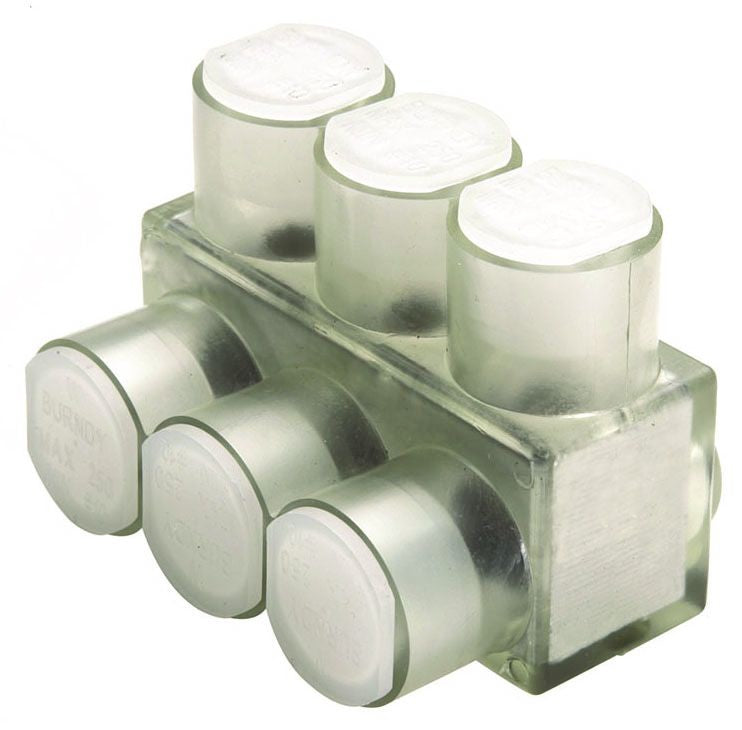

Burndy BIBS3503 Mechanical Multiple Tap Connector

Out of stock
SKU: 164342
Regular price $33.71
OR

Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of clear insulated connectors for code conductor. UL486B Listed. Dual-rated AL9CU for any stranded copper or stranded aluminum applications. 600 Volt, 90° C. Featuring multiple configurations suitable for most any application.

Specifications:

Voltage Rating: 600 V
Number of Ports: 3
Cable Entry: 1-Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 8 AWG (Aluminum), 10 AWG Stranded (Copper)
Maximum Conductor Size: 350 KCMIL (Aluminum), 350 KCMIL Stranded (Copper)
Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
Approval: UL 486B, CSA
