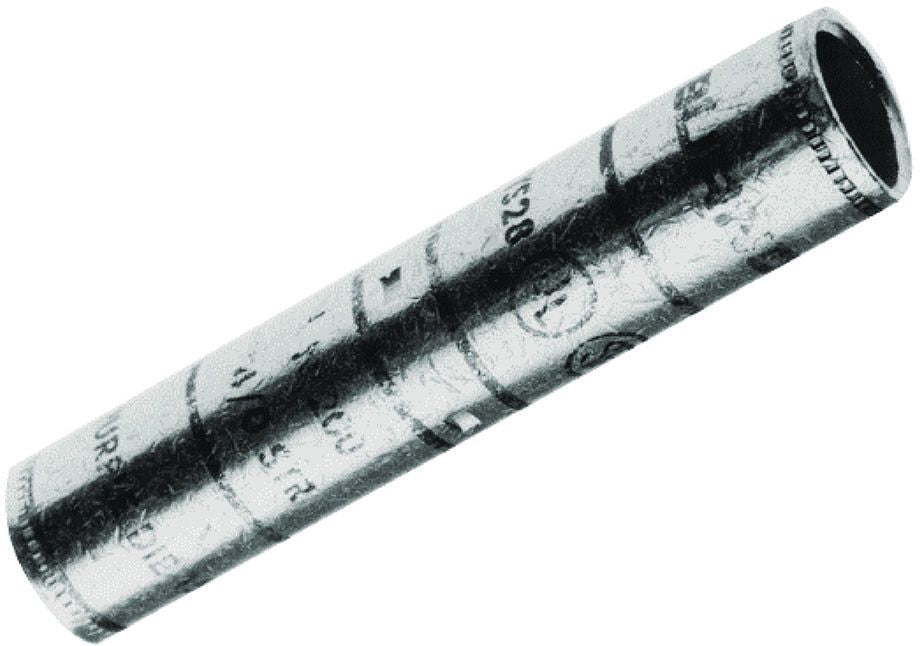

Long Barrel Length; Ideal for 600 Volt Heavy Duty Applications also May be Used at Higher Voltages up to 35 KV; Four (4) Center Conductor Stops Provides a Center Wire Stop for Proper Conductor Insertion; High Pull Out Force Provides Added Security for Much Greater Mechanical and Electrical Properties; RoHS Compliant

Specifications:

Type: Butt and Centre Wire Stop
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Size: 750 KCMIL Stranded
Conductor Material: Copper
Color Code: Black
Barrel Type: Long with Beveled Entry, Chamfered
Length: 6.38 Inch
Outer Diameter: 1.3 Inch
Body Material: Electro Tin Plated Copper
Approval: UL 486A/B, CSA
