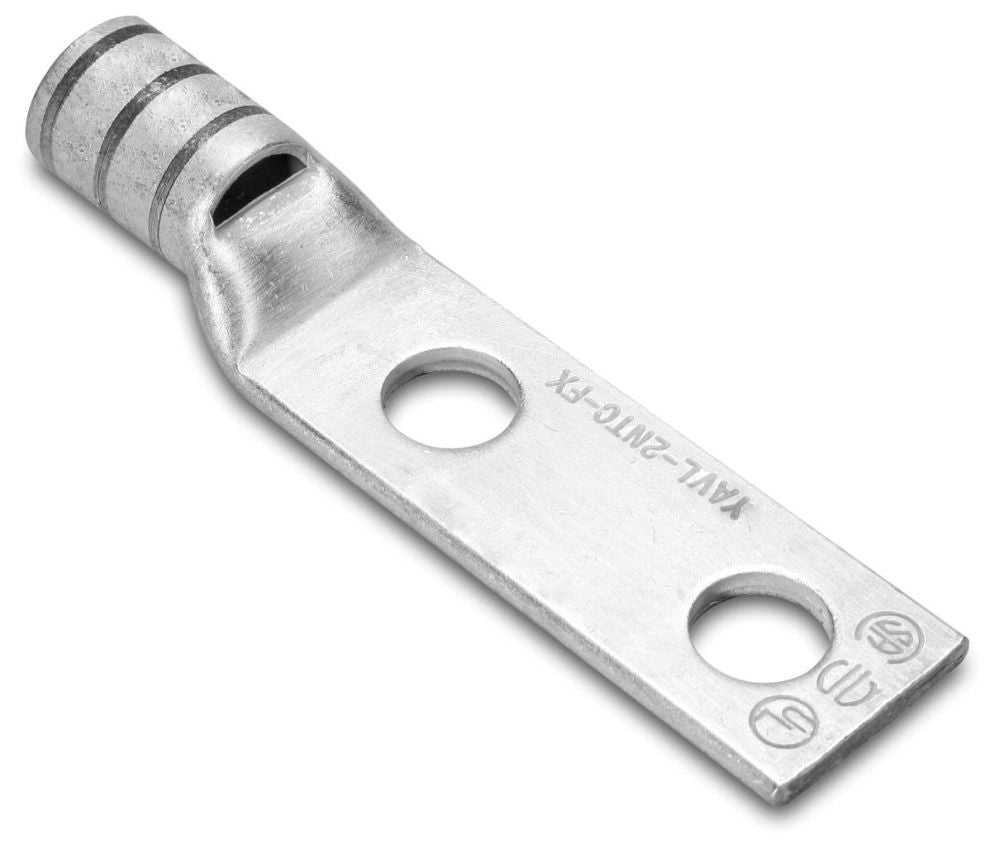

Burndy YA31L2TC38FX Compression Cable Lug

Out of stock
SKU: 164522
Regular price $16.63
OR

Inspection Windows Allows for Visual Verification that the Wire has Been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 250 KCMIL (Flex), 262 KCMIL (DLO)
Barrel Type: Standard, Straight
Barrel Length: 1.06 Inch
Pad Size: 1.84 Inch Length x 1.29 Inch Width x 0.18 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: White
Die Index: 17/298
Material: Electro Tin Plated Copper
Overall Length: 3.51 Inch
Approval: UL, CSA
