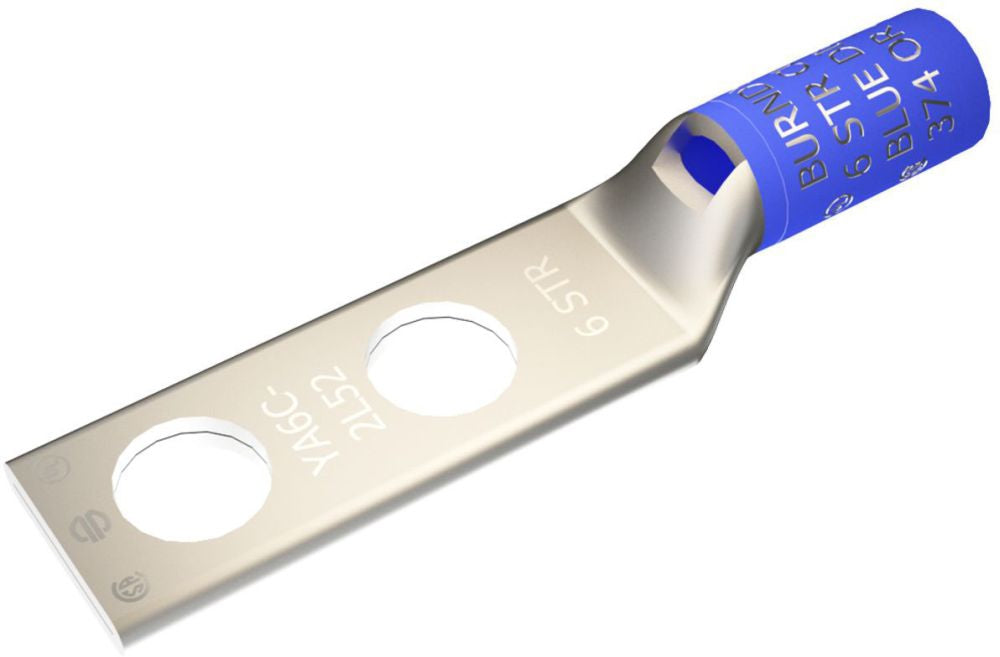

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG Solid/Stranded
Barrel Type: Short, Standard, Chamfered, Skived
Barrel Length: 0.54 Inch
Pad Size: 0.58 Inch Width x 0.06 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Blue
Die Index: 7/374
Material: Electro Tin Plated Copper
Overall Length: 2.63 Inch
Approval: UL 468A/B, CSA
