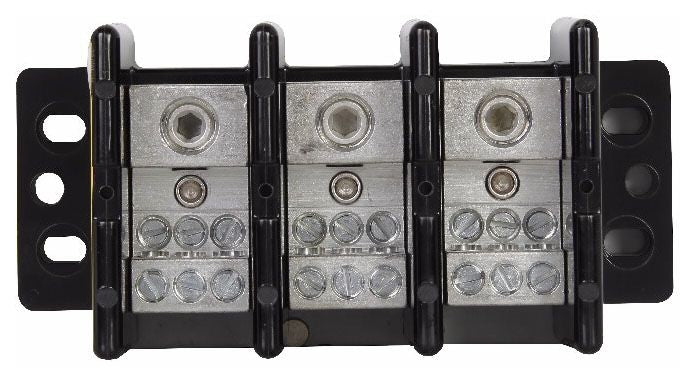

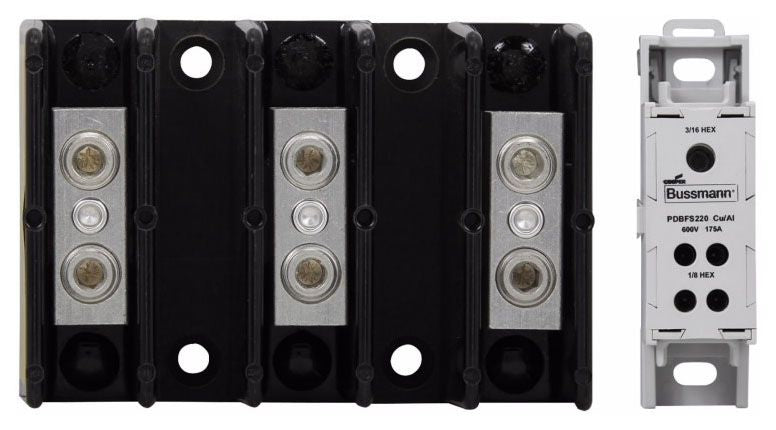

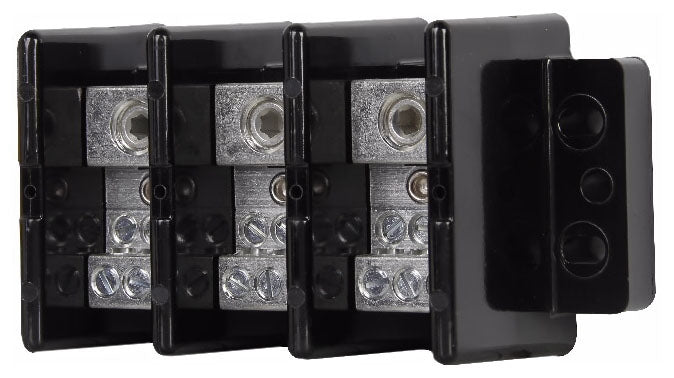

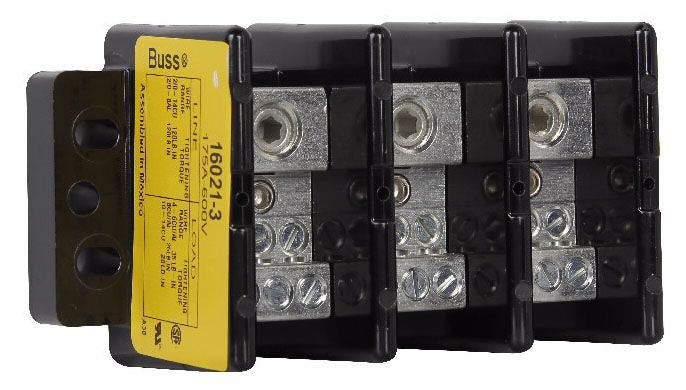

UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations for greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels.

Specifications:

Voltage Rating: 600 Volt AC/DC
Current Rating: 175 Amp
Number of Poles: 3
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 1 to 2/0 AWG Copper/Aluminum (Stranded), 3 to 2 AWG Copper/Aluminum, 8 to 4 AWG Copper/Aluminum, 14 to 10 AWG Copper
Number of Secondary Openings per Pole: 6
Secondary Opening Wire Size: 6 to 4 AWG Copper/Aluminum (Stranded), 8 AWG Copper, 8 AWG Aluminum (Stranded), 14 to 10 AWG Aluminum (Stranded), 14 to 10 AWG Copper
Conductor Material: Copper, Aluminum
Temperature Rating: 75 Deg C
Color: Black
Approval: UL
