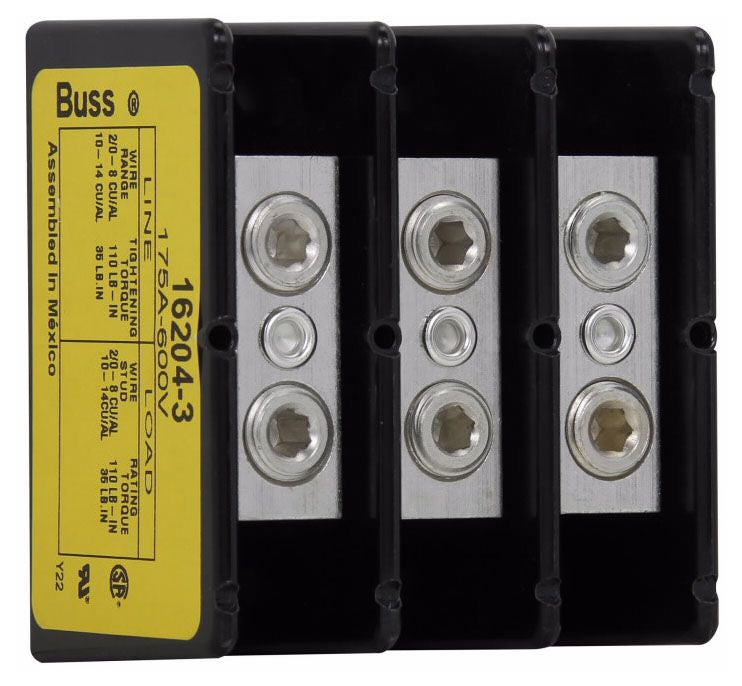

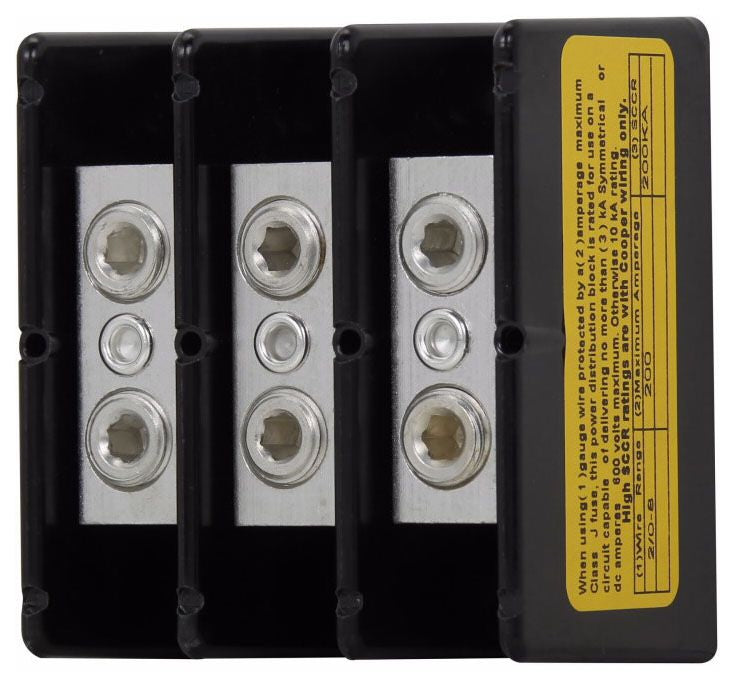

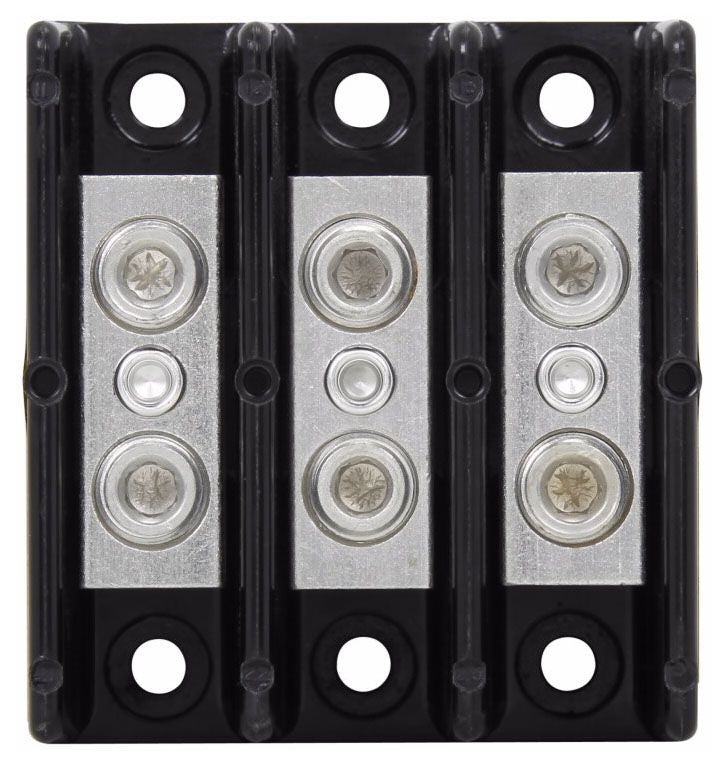

Splicer blocks allow for increasing or decreasing wire size within a circuit to accommodate different connections from the power source to the branch load. These blocks are factory configured from 1- to 4-poles (catalog number dependent) for wire sizes up to 500kcmil and amp ratings up to 760 A. Optional covers are available to enhance safety (order covers separately). These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels.

Specifications:

Type: Barrier, Splicer
Voltage Rating: 600 Volt AC/DC
Current Rating: 175 Amp
Number of Poles: 3
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 1 to 2/0 AWG Copper/Aluminum (Stranded), 8 to 2 AWG Copper/Aluminum, 12 to 10 AWG Aluminum (Stranded), 14 to 10 AWG Copper, 8 to 4 AWG Copper/Aluminum
Number of Secondary Openings per Pole: 1
Secondary Opening Wire Size: 1 to 2/0 AWG Copper/Aluminum (Stranded), 8 to 2 AWG Copper/Aluminum, 12 to 10 AWG Aluminum (Stranded), 14 to 10 AWG Copper, 8 to 4 AWG Copper/Aluminum, 14 to 10 AWG Copper
Conductor Material: Copper, Aluminum
Temperature Rating: 75 Deg C
Connector Material: Tin-Plated Aluminum
Color: Black
Approval: UL, CSA
