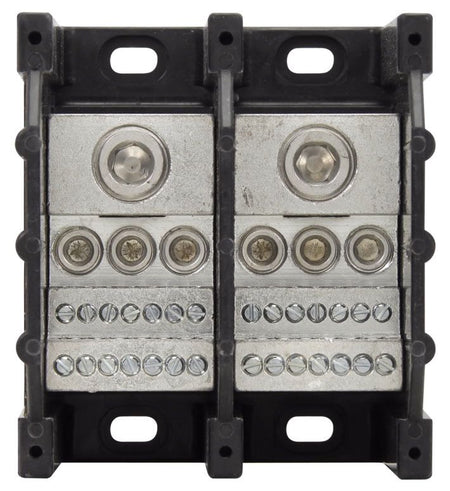

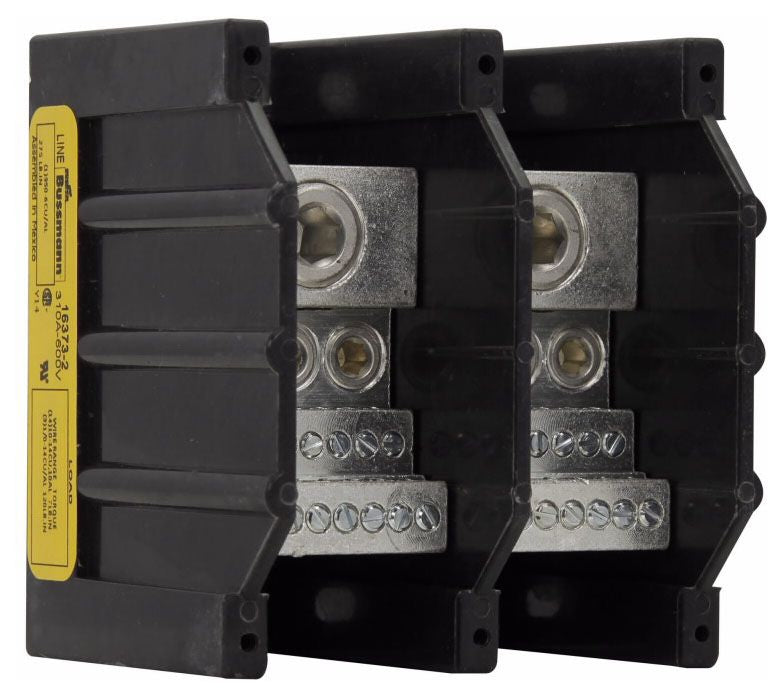

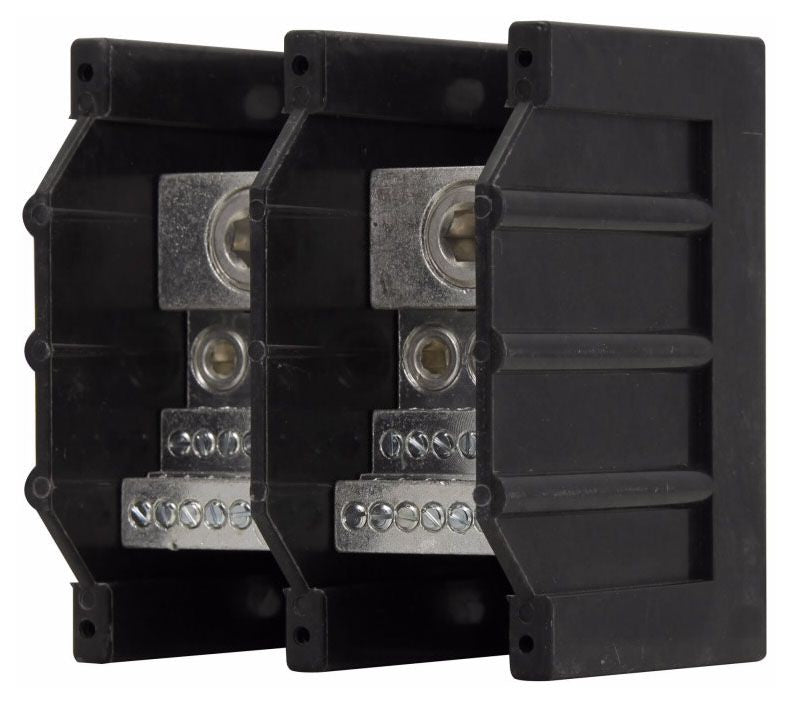

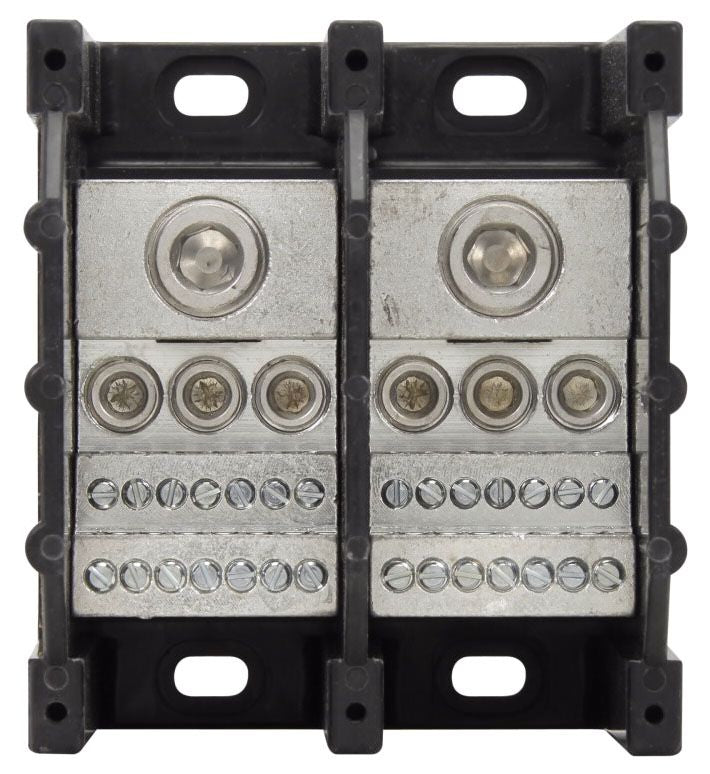

UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations for greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels.

Specifications:

Type: Barrier
Voltage Rating: 600 Volt AC/DC
Current Rating: 310 Amp
Number of Poles: 3
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 2/0 AWG to 350 KCMIL Copper/Aluminum (Stranded), 1/0 AWG Copper/Aluminum (Stranded), 6 to 1 AWG Copper/Aluminum
Number of Secondary Openings per Pole: 21
Secondary Opening Wire Size: 10 AWG Copper/Aluminum, 14 to 12 AWG Copper
Conductor Material: Copper, Aluminum
Temperature Rating: 75 Deg C
Connector Material: Tin-Plated Aluminum
Color: Black
Approval: UL
