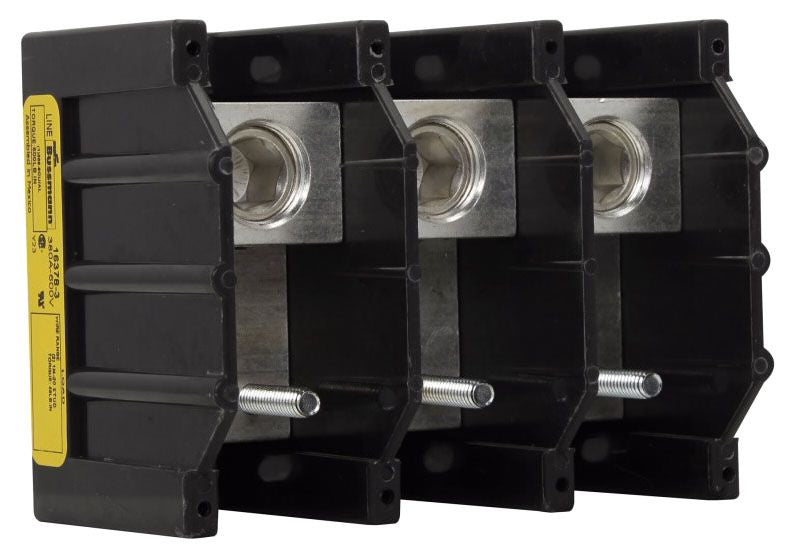

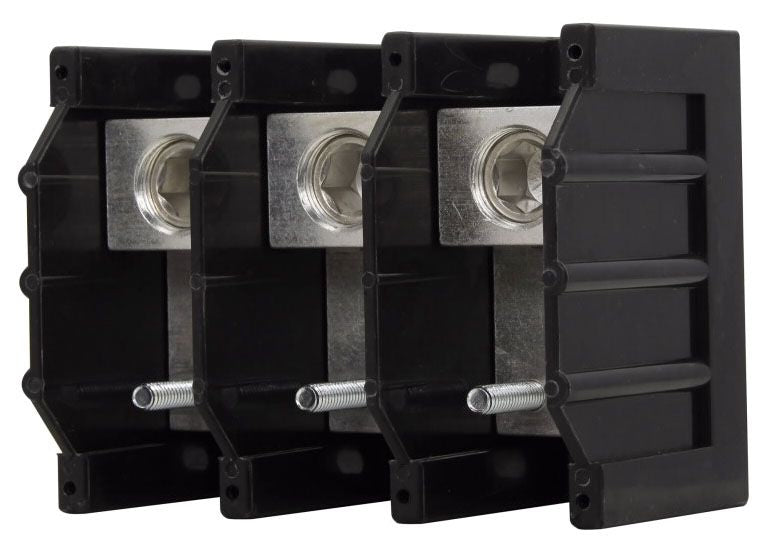

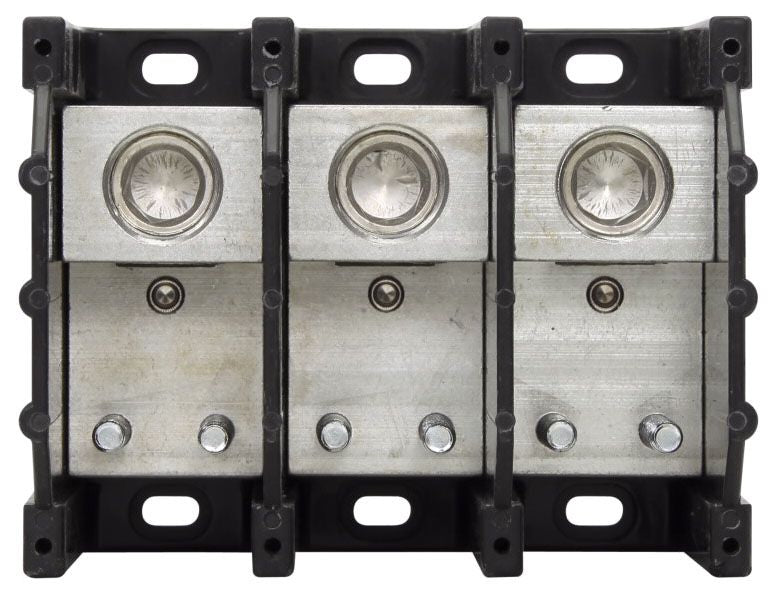

Port-to-stud and stud-to-stud power terminal blocks are available with current ratings up to 760 A. These blocks provide a convenient stud connection means for lug/ring wire terminals. Factory configured from 1- to 3-poles (catalog number dependent) with optional covers to enhance safety (order covers separately), these blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels.

Specifications:

Type: Barrier
Voltage Rating: 600 Volt AC/DC
Current Rating: 380 Amp
Number of Poles: 3
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 4/0 AWG to 500 KCMIL Copper/Aluminum (Stranded), 1/0 to 3/0 AWG Copper/Aluminum (Stranded), 6 to 1 AWG Copper/Aluminum
Number of Secondary Openings per Pole: 2
Secondary Opening Wire Size: 1/4 Inch-20 TPI x 1 Inch Stud
Conductor Material: Copper, Aluminum
Temperature Rating: 75 Deg C
Connector Material: Tin-Plated Aluminum
Color: Black
Approval: UL, CSA
