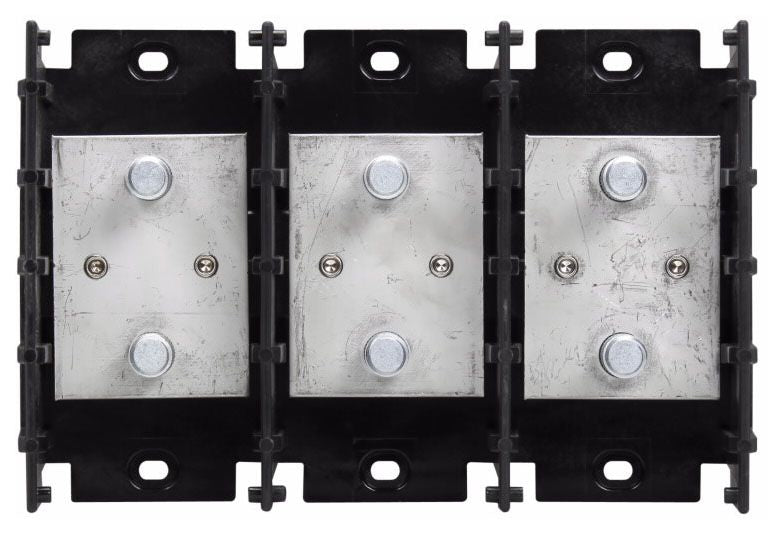

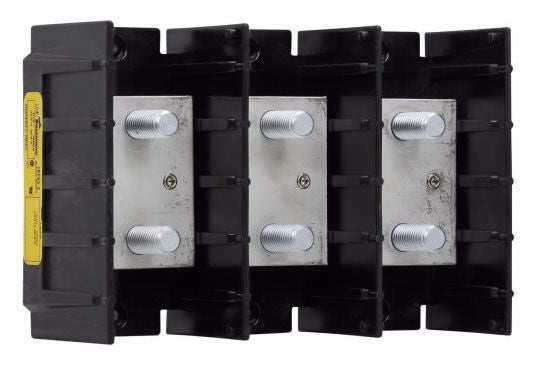

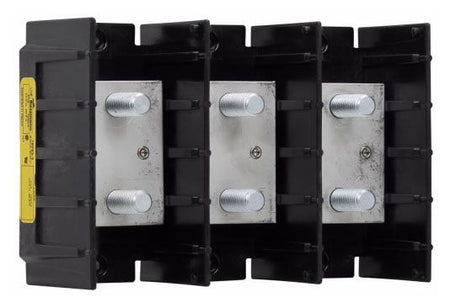

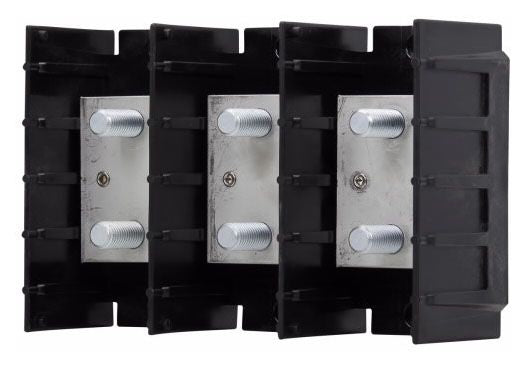

Port-to-stud and stud-to-stud power terminal blocks are available with current ratings up to 760 A. These blocks provide a convenient stud connection means for lug/ring wire terminals. Factory configured from 1- to 3-poles (catalog number dependent) with optional covers to enhance safety (order covers separately), these blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels.

Specifications:

Voltage Rating: 600 Volt AC/DC
Current Rating: 600 Amp
Number of Poles: 3
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 1/2 Inch-13 TPI x 1 Inch Stud
Number of Secondary Openings per Pole: 1
Secondary Opening Wire Size: 1/2 Inch-13 TPI x 1 Inch Stud
Temperature Rating: 75 Deg C
Approval: UL, CSA
