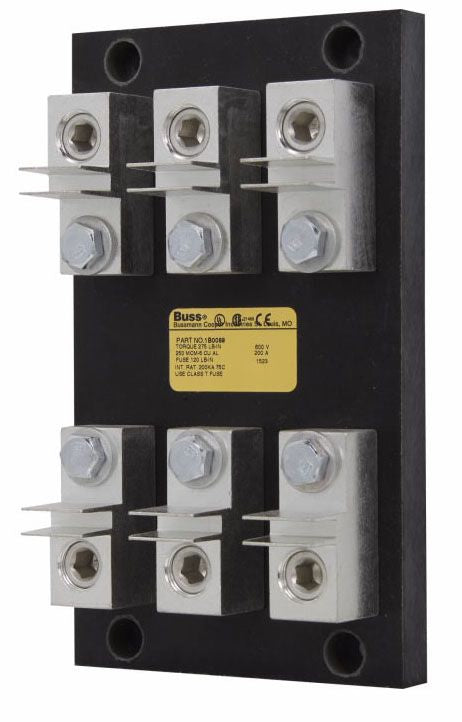

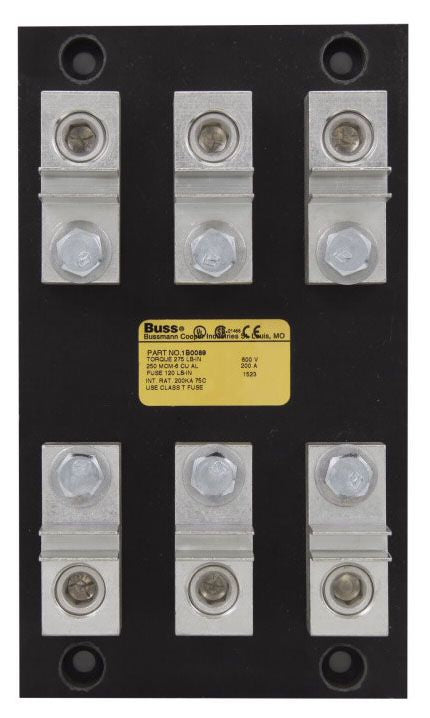

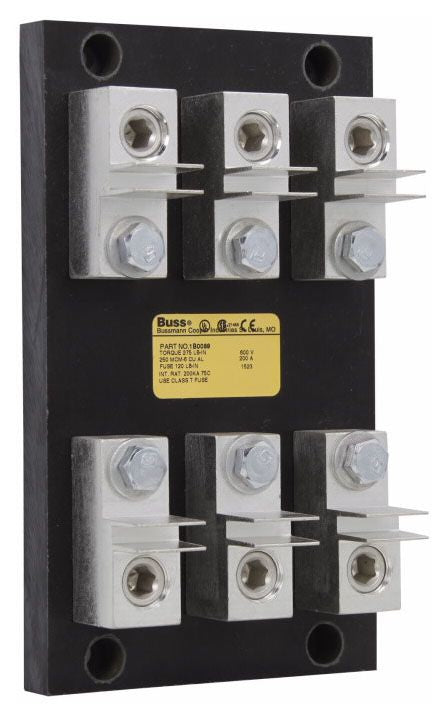

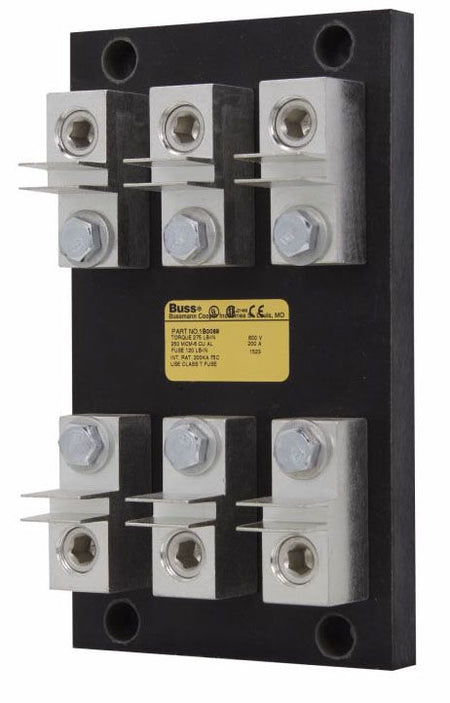

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today’s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Specifications:

Material: Glass Polyester
Number of Poles: 3
Fuse Type: Class T
Fuse Voltage Rating: 600 Volt
Fuse Current Rating: 101 to 200 Amp
Wire Size: 6 AWG to 250 KCMIL Aluminum/Copper
Terminal Type: Box Lug
Approval: UL 512, CSA C22.2
