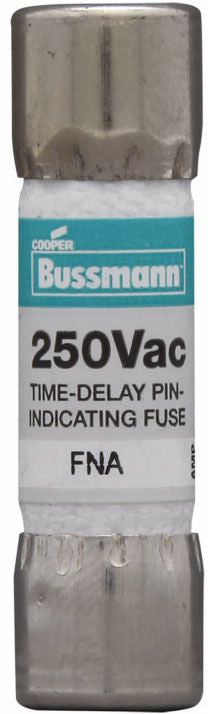

Color Coded by Maximum Voltage Rating; Pin Indication for Visual Indication of Open Fuse Condition; Dual-Element, Time-Delay Performance Permit Close Sizing on Control Transformer and Relay; Silver Plated Pin for Positive, Electrical Signal Activation; 12 Amp and More Version are Dual-Tube Construction

Specifications:

Type: Pin Indicating
Characteristics: Time Delay, Dual Element
Voltage Rating: 250 Volt AC
Current Rating: 1/8 Amp
Interrupting Rating: 35 Amp at 250 Volt AC, 10 Kiloamp at 125 Volt AC
Terminal Type: Ferrule
Diameter: 13/32 Inch
Length: 1-1/2 Inch
Approval: UL, CSA, CE
