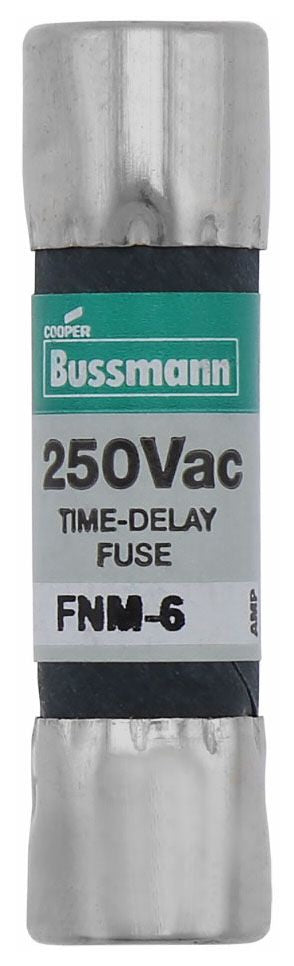

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

Characteristics: Time Delay, Dual Element
Voltage Rating: 250 Volt AC
Current Rating: 15/100 Amp
Interrupting Rating: 35 Amp at 250 Volt AC, 10 Kiloamp at 125 Volt AC
Terminal Type: Ferrule
Diameter: 13/32 Inch
Length: 1-1/2 Inch
Approval: UL 248-14, CSA, CE
