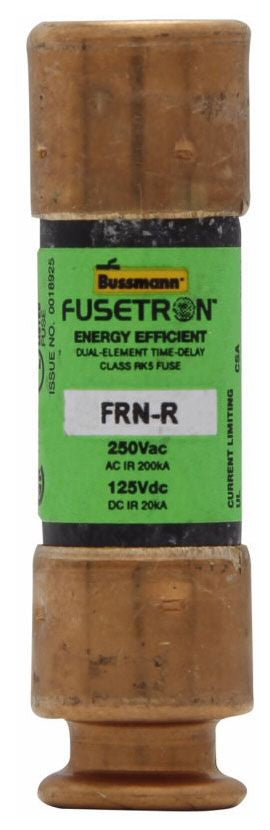

Bussmann FRN-R-1-1/4 Time Delay Fuse
Couldn't load pickup availability
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current.
Specifications:
Type: Class RK5
Characteristics: 8 Second Time Delay (at 500 Percent Rated Current), Dual Element, Non-Indicating
Voltage Rating: 250 Volt AC, 125 Volt DC
Current Rating: 1-1/4 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical), 20 Kiloamp DC
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 2 Inch
Approval: UL, CSA C22.2, CE
