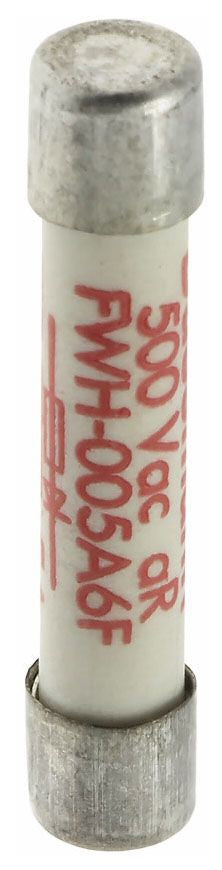

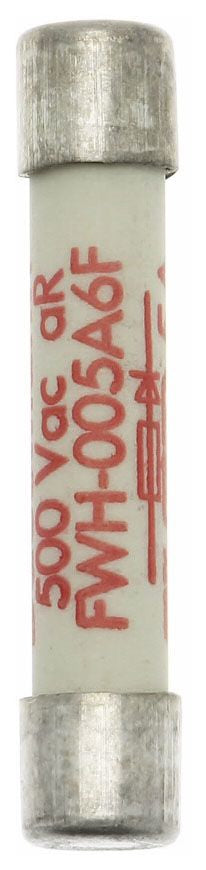

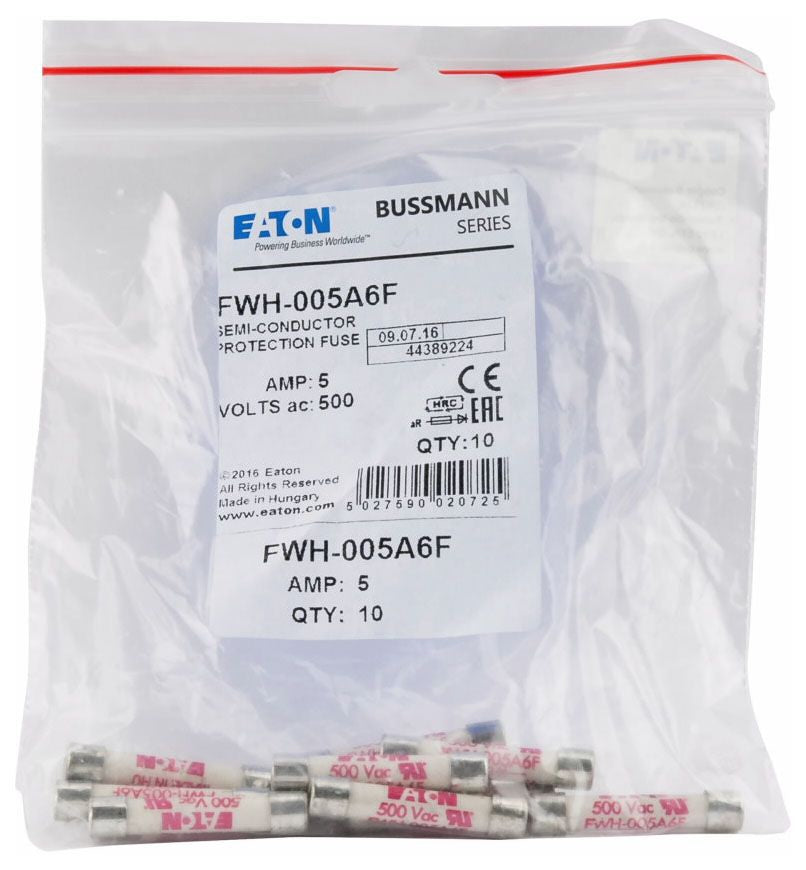

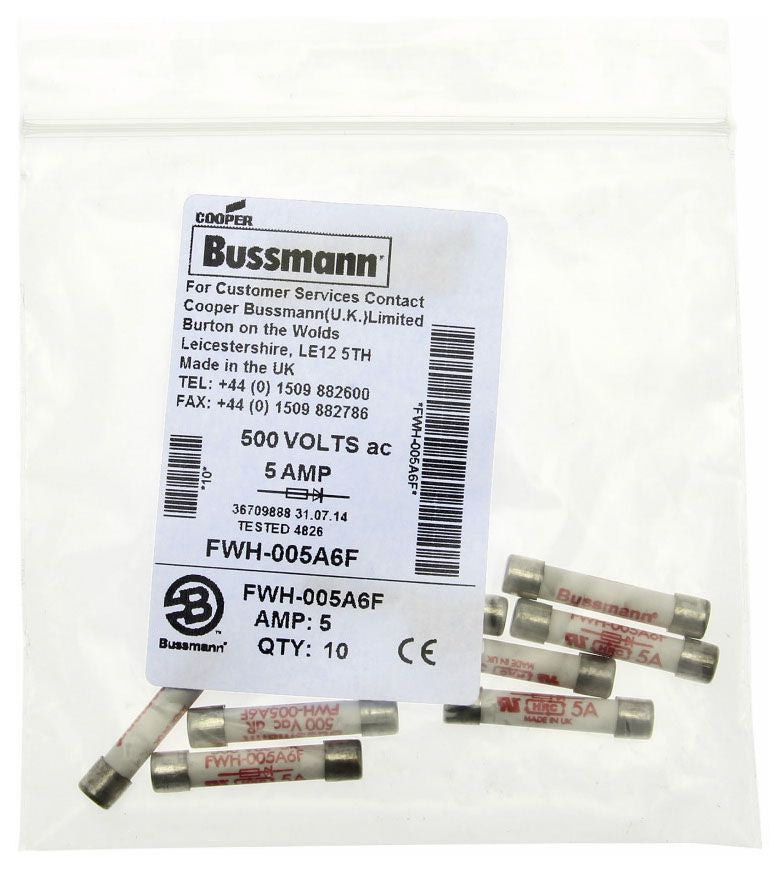

Bussmann FWH-005A6F High Speed Fuse

Out of stock
SKU: 166882
Regular price $18.49

High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristors (GTOs) and IGBTs and in light and heavy harsh DC traction applications as high as 4000Vdc and 10,000A. Also used for the protection of DC link/power converters. Optimized dimensions and materials allow for excellent thermal dissipation for high current cycling enviroments, or heavy duty applications.


Characteristics: High Speed
Voltage Rating: 500 Volt AC, 600 Volt DC
Current Rating: 5 Amp
Interrupting Rating: 50 Kiloamp (AC/DC)
Terminal Type: Ferrule
Diameter: 1/4 Inch
Length: 1-1/4 Inch
Approval: UL, CE, CSA 1422-30/1422-90
