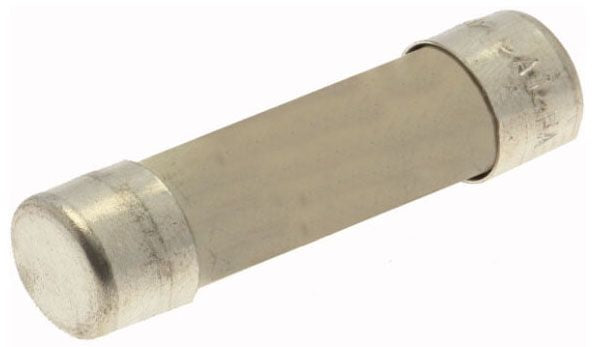

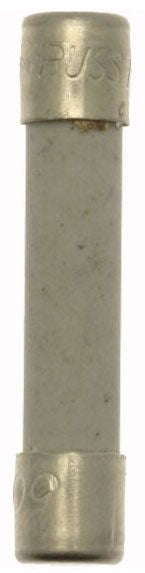

High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristors (GTOs) and IGBTs and in light and heavy harsh DC traction applications as high as 4000Vdc and 10,000A. Also used for the protection of DC link/power converters. Optimized dimensions and materials allow for excellent thermal dissipation for high current cycling enviroments, or heavy duty applications.

Specifications:

Characteristics: High Speed
Voltage Rating: 500 Volt AC
Current Rating: 10 Amp
Interrupting Rating: 50 Kiloamp (AC)
Terminal Type: Ferrule
Diameter: 1/4 Inch
Length: 1-1/4 Inch
Approval: UL, CE
