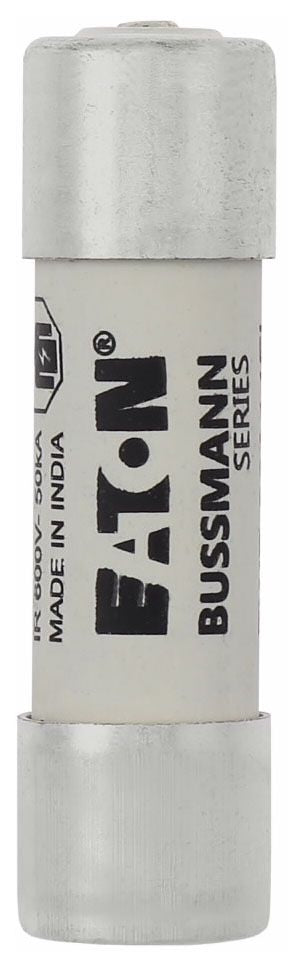

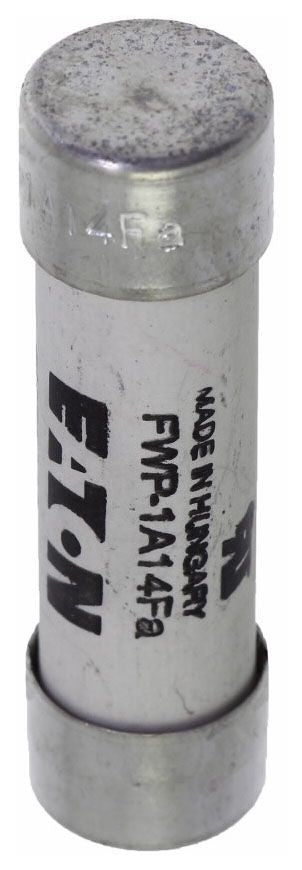

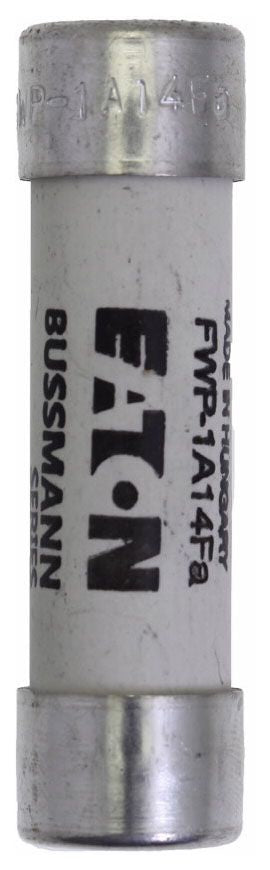

High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristors (GTOs) and IGBTs and in light and heavy harsh DC traction applications as high as 4000Vdc and 10,000A. Also used for the protection of DC link/power converters. Optimized dimensions and materials allow for excellent thermal dissipation for high current cycling enviroments, or heavy duty applications.

Specifications:

Type: Class aR
Characteristics: High Speed
Voltage Rating: 700 Volt AC (UL)
Current Rating: 1 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical)
Terminal Type: Ferrule
Diameter: 9/16 Inch
Length: 2 Inch
Approval: UL, CE, CSA 1422-30/90, IEC 60269
