Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

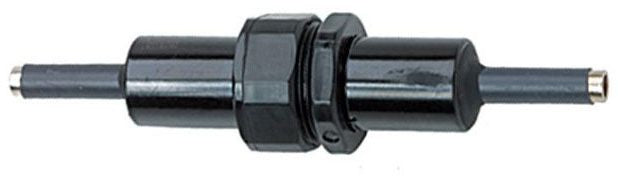

Type: In-Line, Non-Breakaway
Number of Poles: 1
Fuse Type: 13/32 Inch x 1-1/2 Inch
Voltage Rating: 600 Volt
Fuse Current Rating: 30 Amp
Line Wire Size: 2 AWG Solid, 4 to 3 AWG Stranded (Aluminum)
Load Wire Size: 2 AWG Solid, 4 to 3 AWG Stranded (Aluminum)
Terminal Type: Crimp (Line/Load)
Approval: CSA 6225-01, CE
