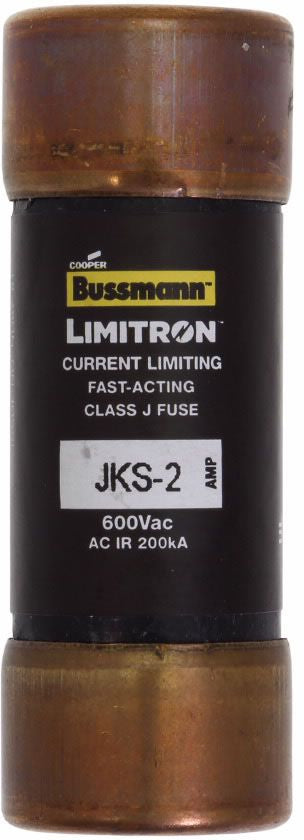

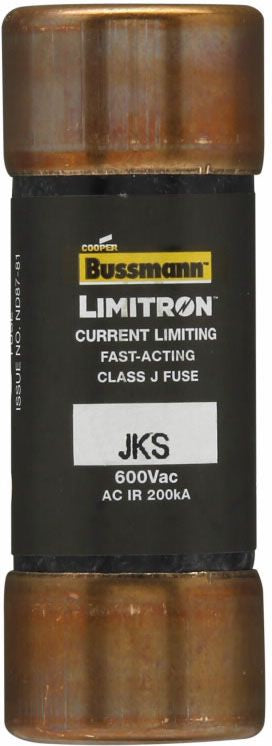

Provides 10X Better Current Limitation to Help Prevent Equipment Damage Caused by Short-Circuit Events; 200 Kiloamp Interrupting Rating Complies with NEC Section 110.9 for Today's Large Capacity System; Fast-Acting Fuse Helps Prevent Equipment Damage Caused by Short-Circuit Events

Specifications:

Type: Class J
Characteristics: Fast Acting
Voltage Rating: 600 Volt AC
Current Rating: 2 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical)
Terminal Type: Ferrule
Diameter: 0.81 Inch
Length: 2.25 Inch
Approval: UL, CSA C22.2, CE
