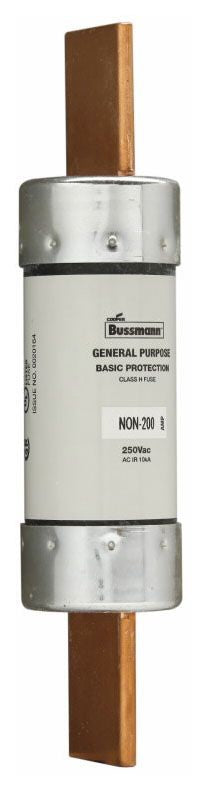

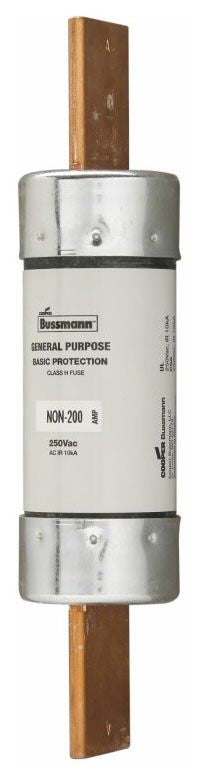

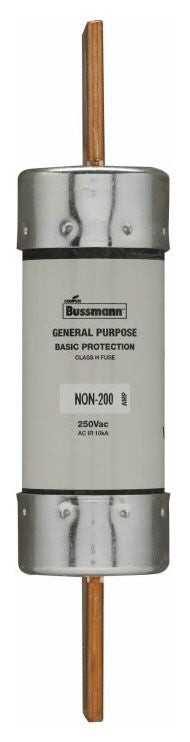

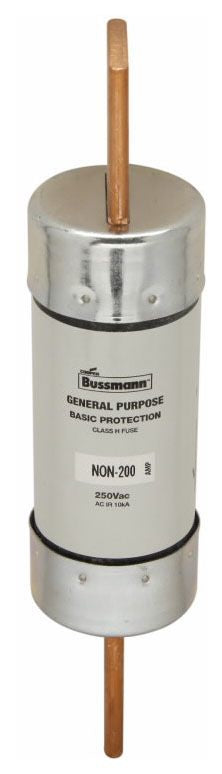

Bussmann NON-200 General Purpose Fuse

Out of stock
SKU: 167604
Regular price $58.34

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.


Type: Class K5/H
Characteristics: One Time, Non-Current Limiting
Voltage Rating: 250 Volt AC
Current Rating: 200 Amp
Interrupting Rating: 10 Kiloamp (Symmetrical/DC)
Terminal Type: Ferrule
Diameter: 1.56 Inch
Length: 7.13 Inch
Approval: UL, CSA, CE
