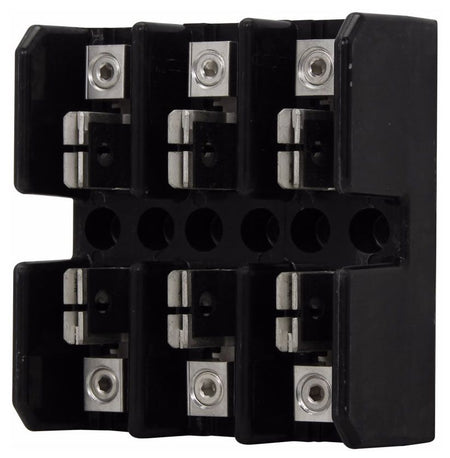

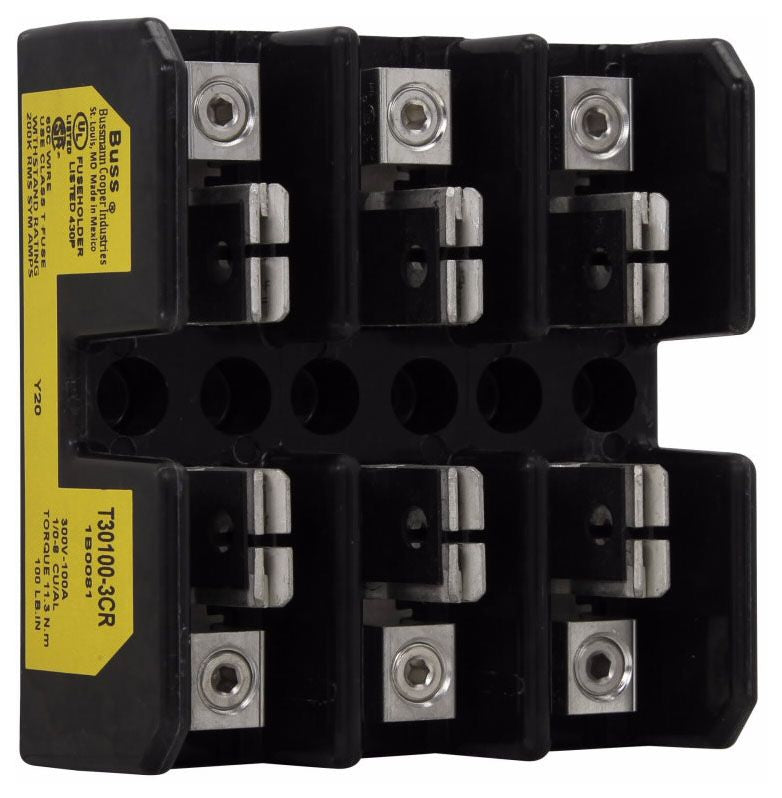

Bussmann T30100-3CR Fuse Block

Out of stock
SKU: 167805
Regular price $141.20
OR

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today’s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Specifications:

Type: Barrier
Material: Phenolic
Number of Poles: 3
Fuse Type: Class T
Fuse Voltage Rating: 300 Volt
Fuse Current Rating: 61 to 100 Amp
Wire Size: 8 to 1/0 AWG Copper/Aluminum
Terminal Type: Box Lug
Approval: UL 512, CSA C22.2, CE
