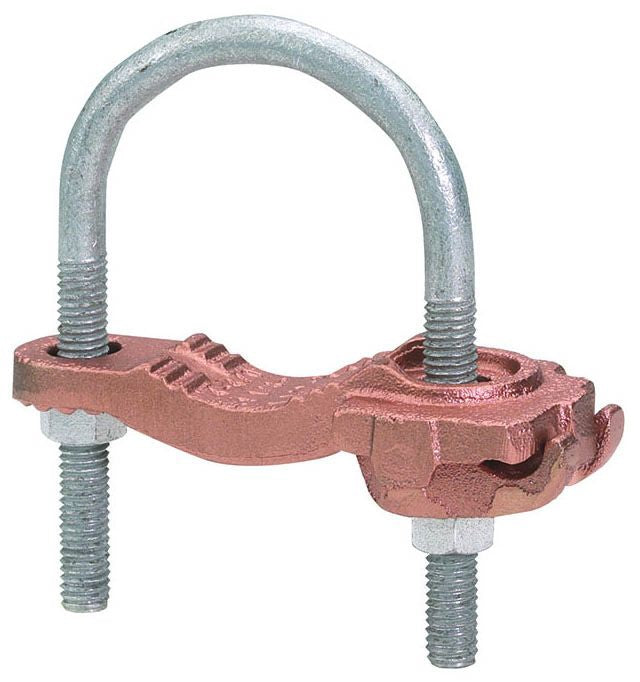

Burndy GAR3909 Mechanical Grounding Connector
Couldn't load pickup availability
High Conductivity Copper Ground Connector for Connecting a Small to Medium Range Copper Ground Conductor to Water Pipe as Well as Structural and Reinforcing Rod Shapes, Cable Clamp Swivels at 90 Deg, Permits Parallel Grounding of One Pipe or a 90 Deg Cable Run for Grounding Several Parallel Pipes, 1-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance and Acceptable for Direct Burial in Earth or Concrete; RoHS Compliant
Specifications:
Conductor Size: 4 to 4/0 AWG Stranded (Copper)
IPS Size: 12 Inch
Rod Size: 12.75 Inch

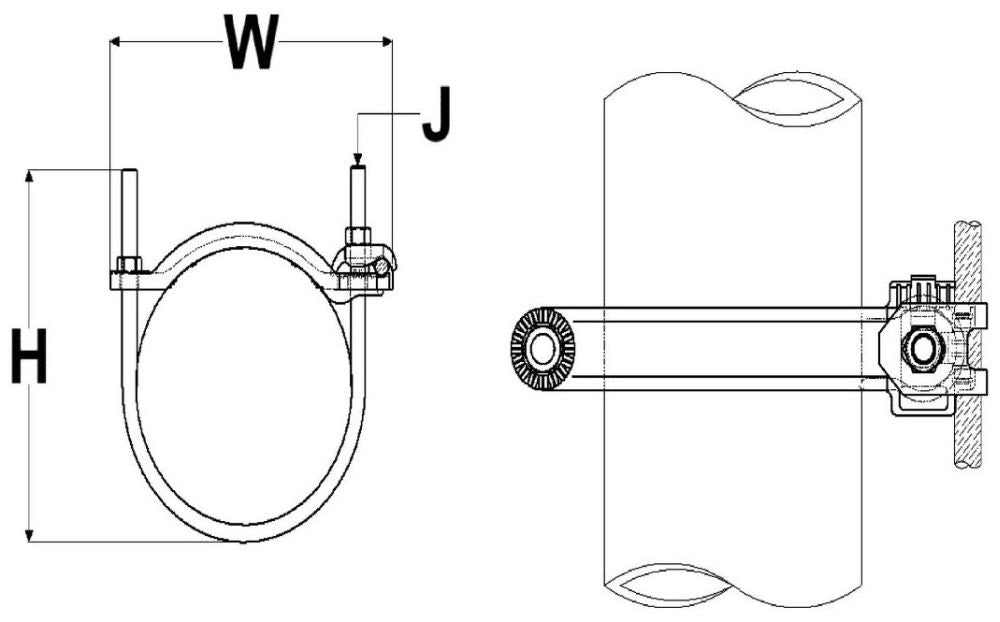

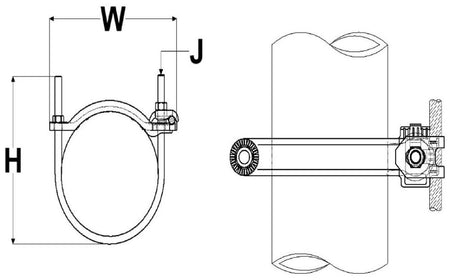

Size: 14.75 Inch W x 14 Inch H
Installation: U-Bolt to Pipe/Rod, Swivel Cable Clamp
Material: Cast High Copper Alloy Body, Galvanized Steel Hardware
Approval: UL 467, CSA C22.2
Used On: Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod
