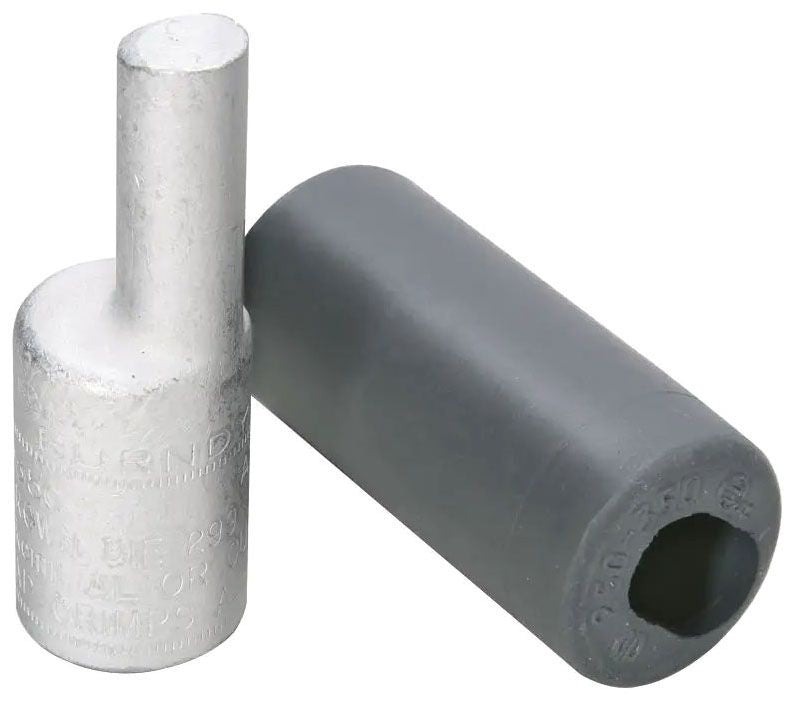

Type AYPO aluminum compression adapters are designed for reliable termination of aluminum and copper conductor in mechanical connectors. Typical applications include mechanical connectors in molded case circuit breakers, panel board equipment, and meter sockets.

Specifications:

Type: Offset
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 500 KCMIL
Material: Tin Plated Aluminum
Insulation Type: EPDM Rubber Insulated
Pin Size: 0.68 Inch Diameter x 1.6 Inch Length
Cover Size: 3.16 Inch Length
Overall Length: 3.43 Inch
Approval: UL, CSA
