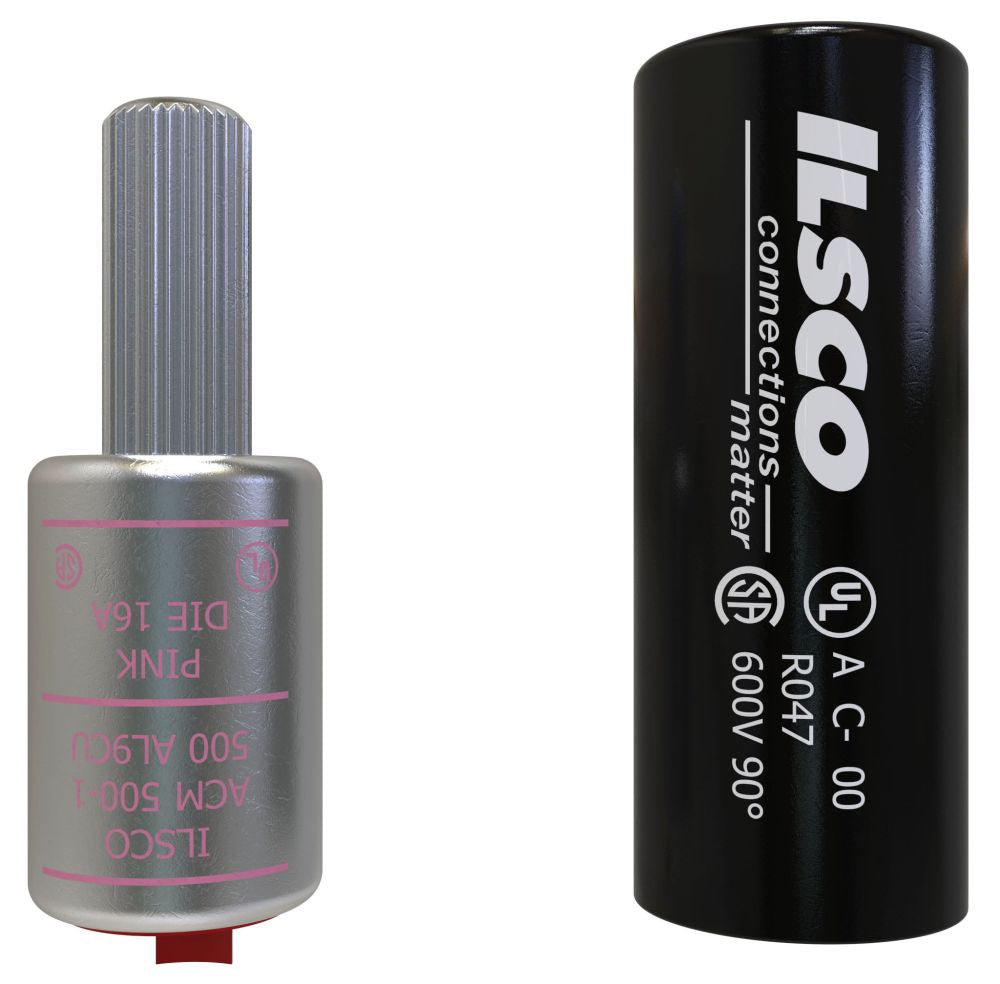

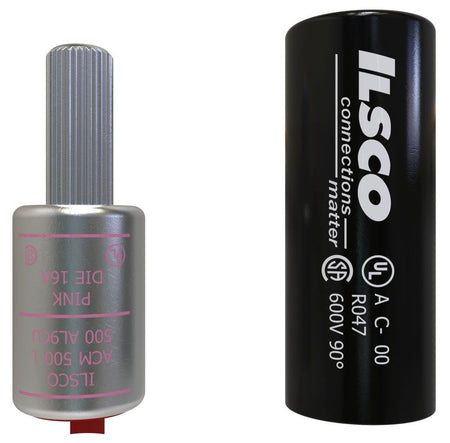

Ilsco ACM-500 Pigtail Adapter

Manufactured from High Strength Aluminum Alloy; Pin is Knurled; Chamfered Barrel; Clearly Marked with Wire Size and Die Index for Ilsco Tools, Proper Number and Location of Crimps; Prefilled with De-Ox; Color Coded End Caps Inserted in Barrel; Supplied with Insulating Cover; Provides Maximum Conductivity and Excellent Crimping Characteristics; Permits Greater Surface Contact; Provides Easy Conductor Insertion; Ensures Reliability for Aluminum or Copper Conductors; Provides Easy Identification and Tooling Recommendation; Prevents Oxides from Forming; Prevents Foreign Materials from Entering the Connector Prior to Usage and Color Code Identifies the Proper Compression Die; Eliminates Taping; RoHS Compliant

Specifications:

Type: Pigtail
Voltage Rating: 600 V
Conductor Material: Copper/Aluminum
Conductor Size: 500 KCMIL
Material: High Strength Aluminum Alloy
Pin Size: 11/16 Inch Dia x 1-39/64 Inch L
Cover Size: 1-3/4 Inch L
Overall Length: 3-41/64 Inch
Approval: UL 486A/B, CSA
